Description
Features:
1.Aluminum alloy pressure beam equipped with automatic lift, thickened body, stable operation.
2.All accessories are of well-known brands such as Chint,Roany, Besten, Delta, etc.

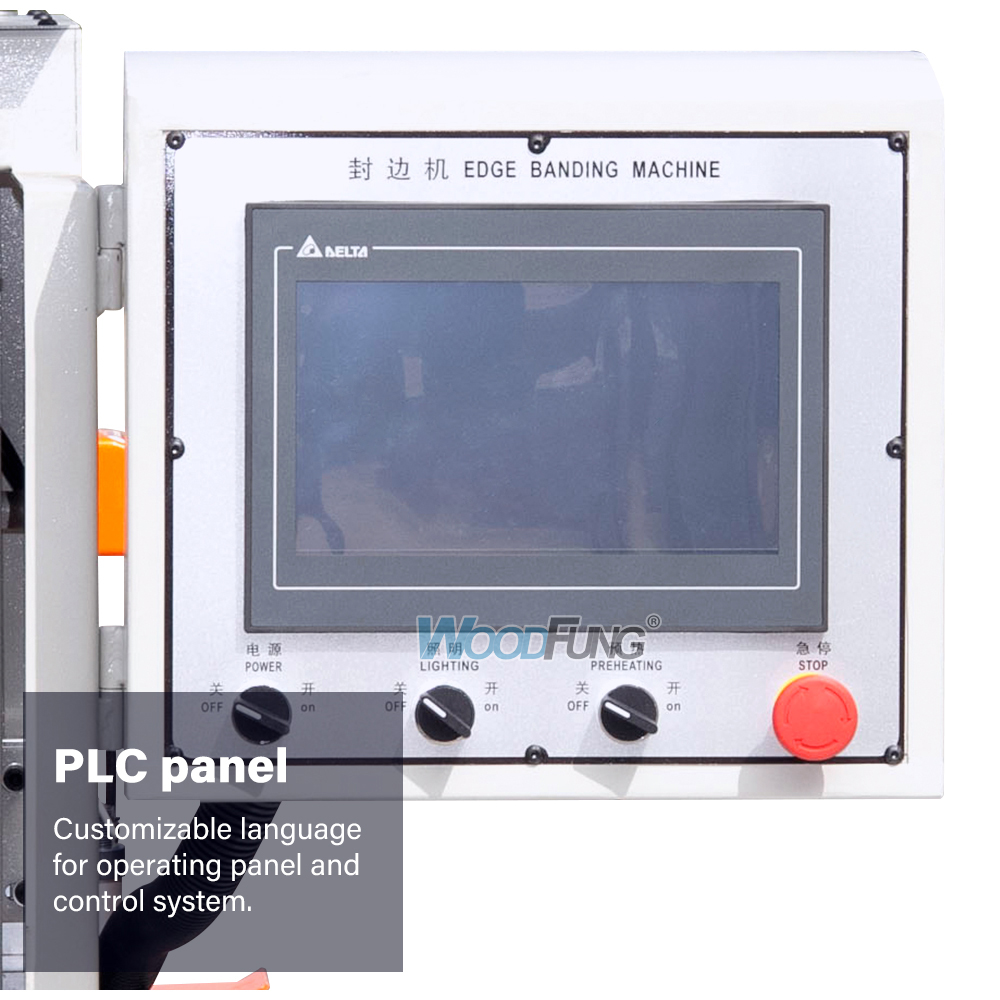

3.The touch screen control system is very easy to operate. And it can be customized for your language.

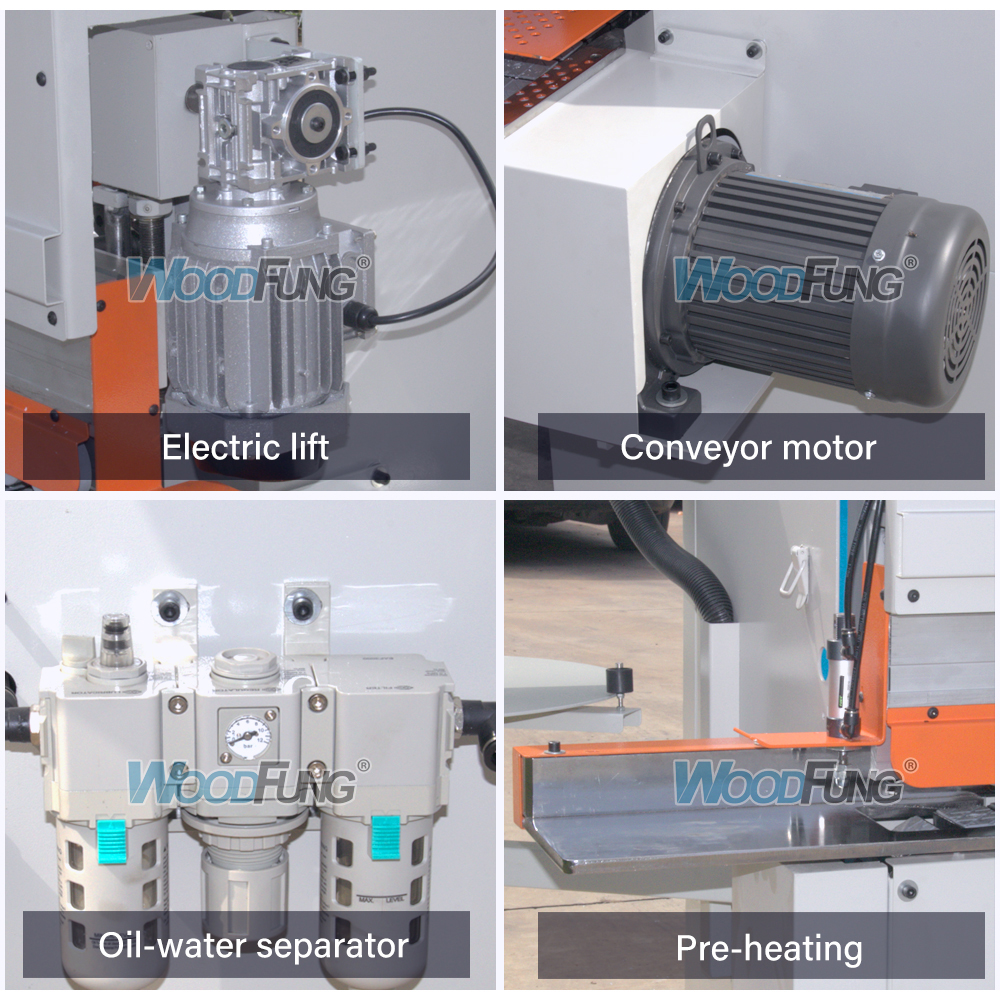

4.Motorized lifting of the pressure beam.

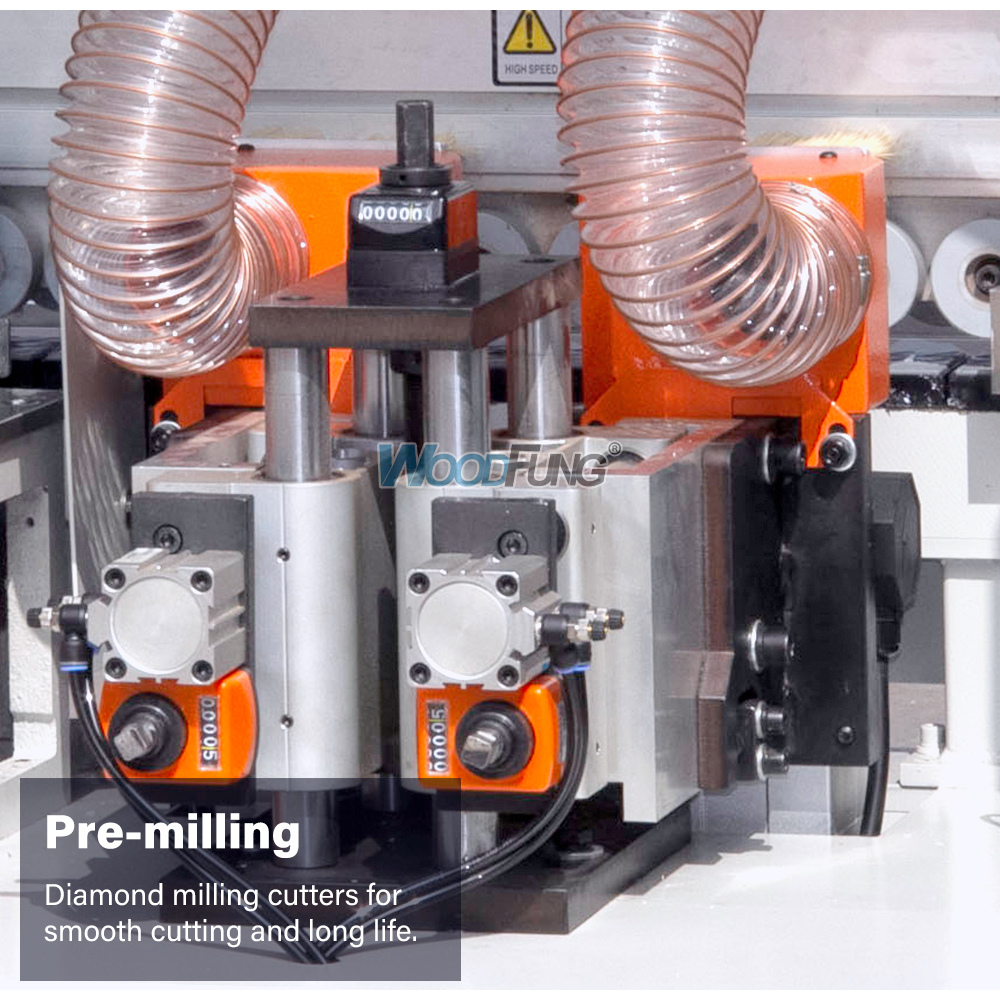

5.Pre-milling flattens the board to ensure a finer glue line.And it has separator nozzles to ensure that the board are not
6.contaminated with wood chips.

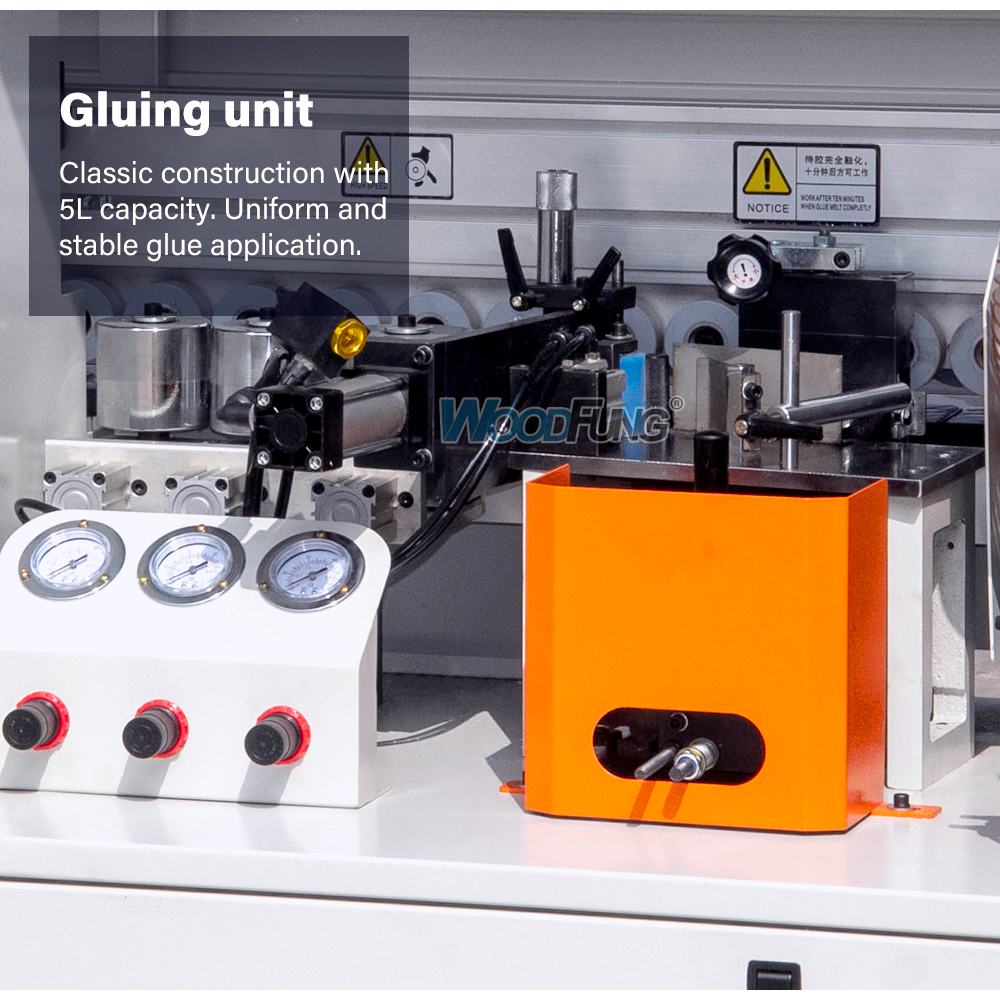

7.Classic gluing structure with even gluing and precise cut off Maximum capacity 5L.
8.The pneumatic press wheel set is equipped with a glue scraping device to avoid mistakes caused by glue sticking to the press wheels.
4. This machine is provided with lifetime technical support and one-year warranty service by Woodfung Machinery.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services.
3.The touch screen control system is very easy to operate. And it can be customized for your language.
4.Motorized lifting of the pressure beam.
5.Pre-milling flattens the board to ensure a finer glue line.And it has separator nozzles to ensure that the board are not
6.contaminated with wood chips.
7.Classic gluing structure with even gluing and precise cut off Maximum capacity 5L.
8.The pneumatic press wheel set is equipped with a glue scraping device to avoid mistakes caused by glue sticking to the press wheels.
Service and Guarantee
1. We welcome customization of body color, logo, label, shape, structure, etc.
2. The Woodfung brand welcomes you to become our exclusive regional agent.
3. We provide free picture and video shooting services for our agents.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services.
Specification
|
Model
|

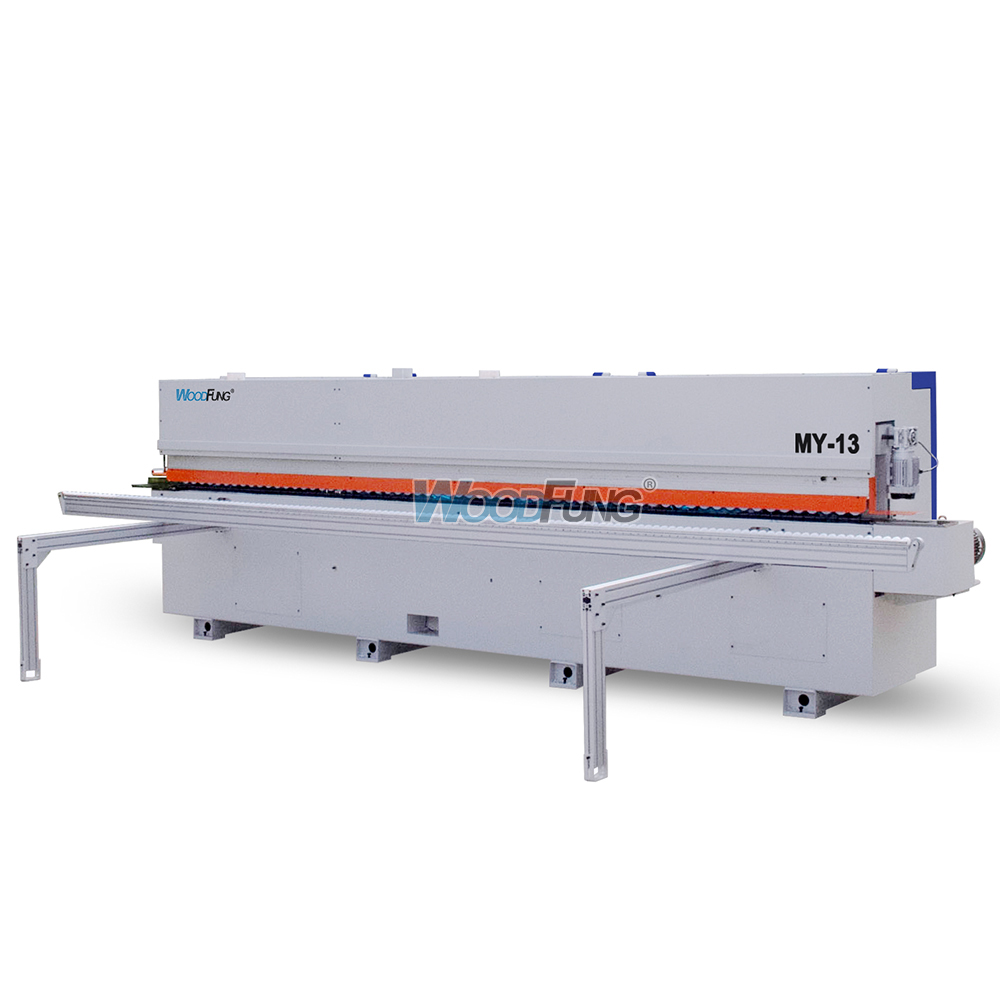

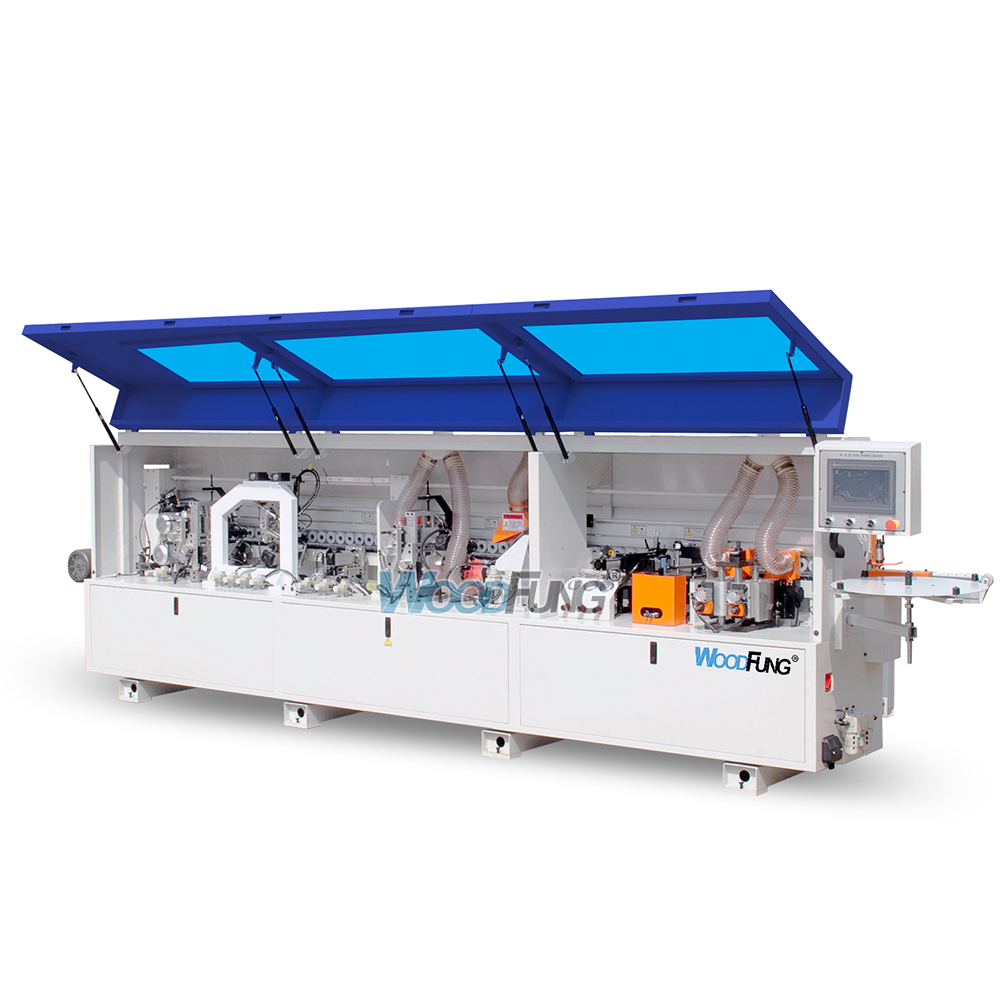

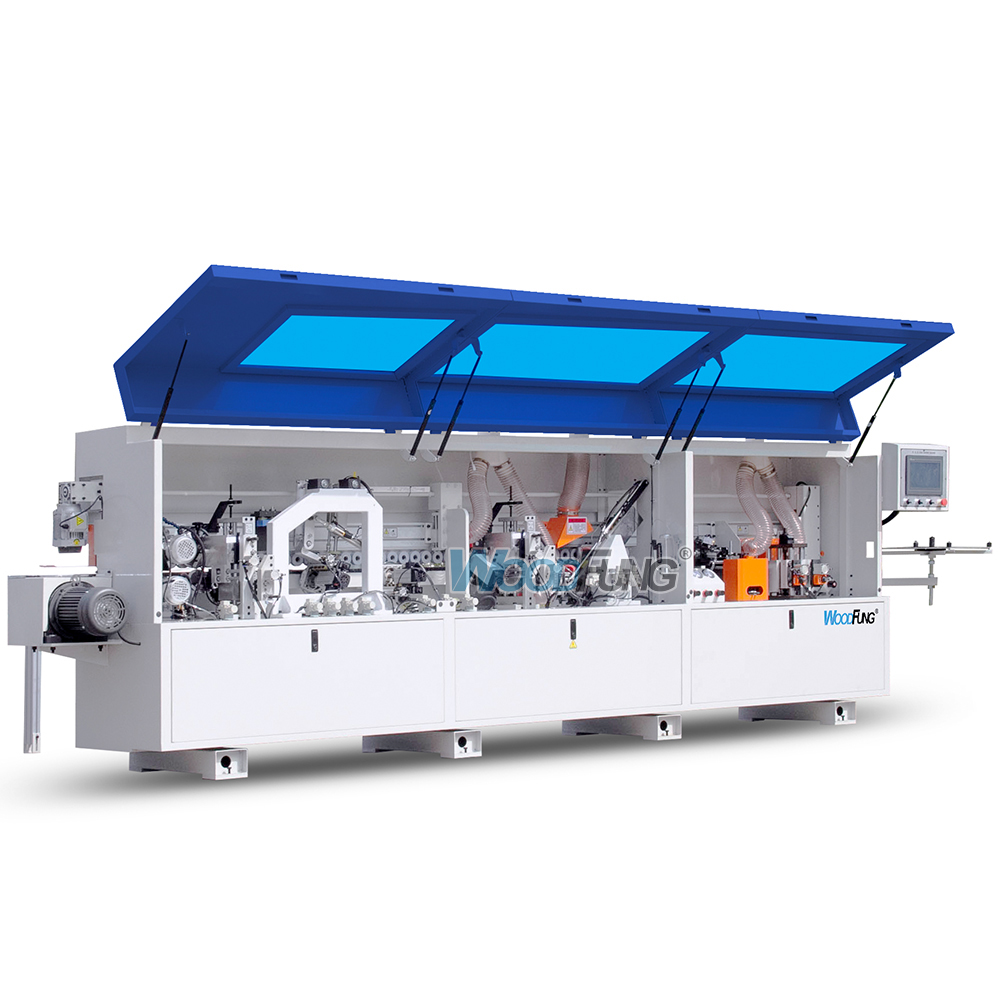

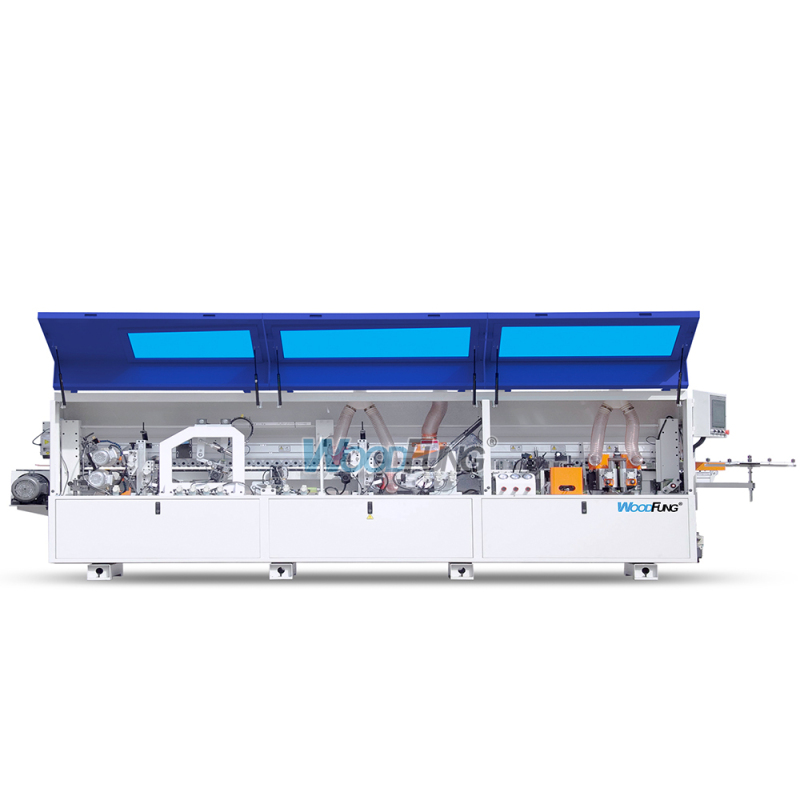

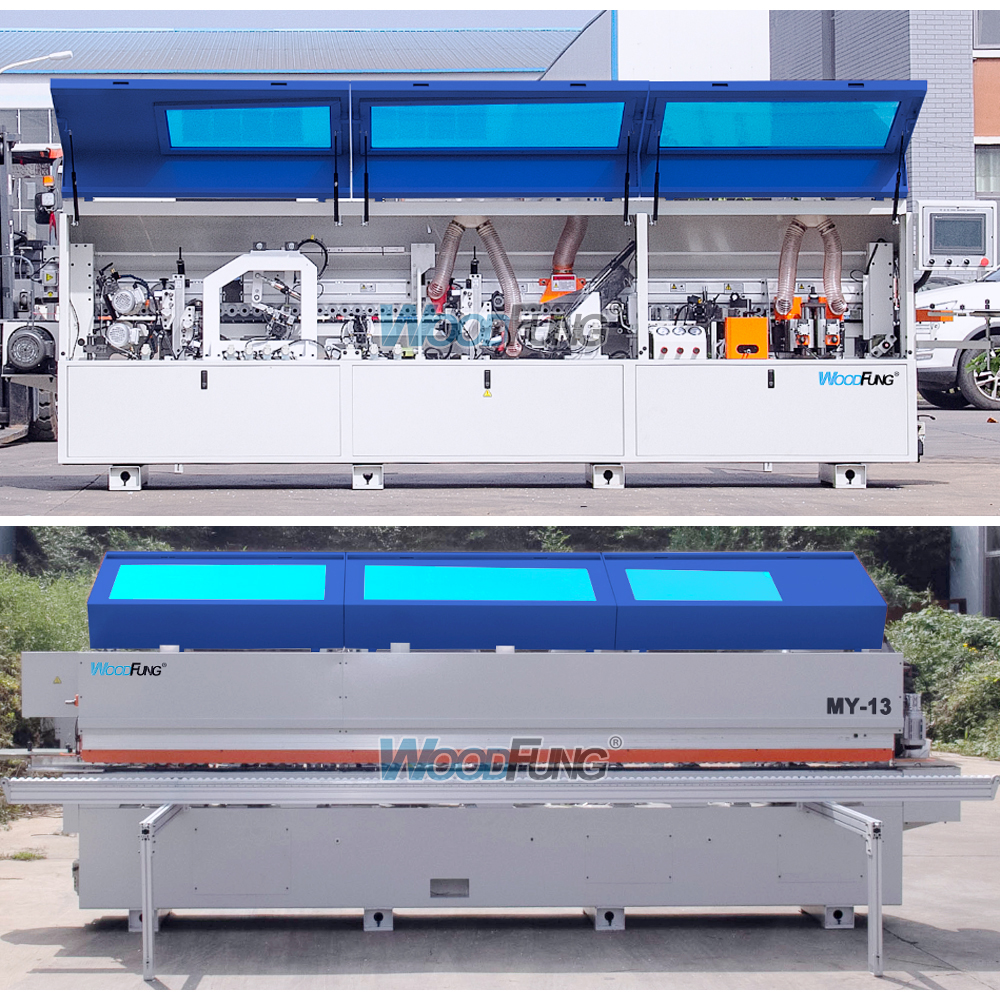

MY13 full automatic edge banding machine
|
||
|

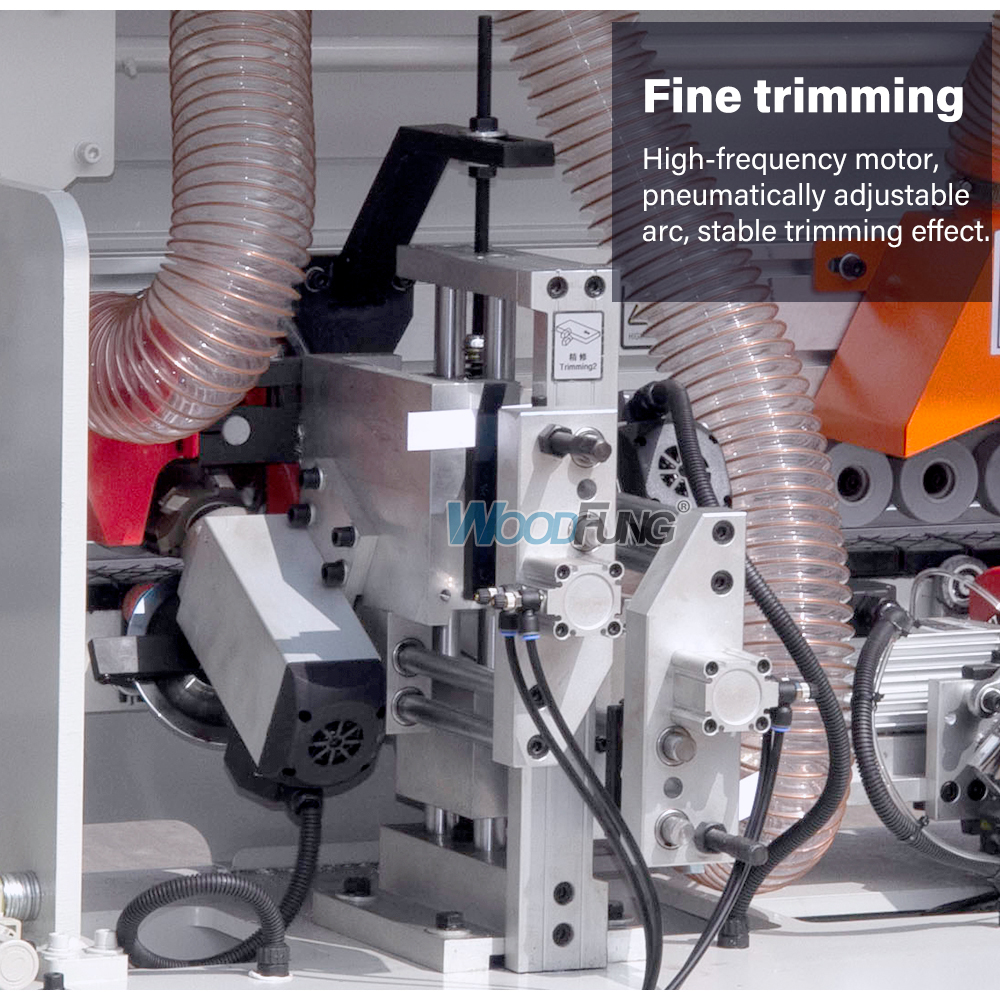

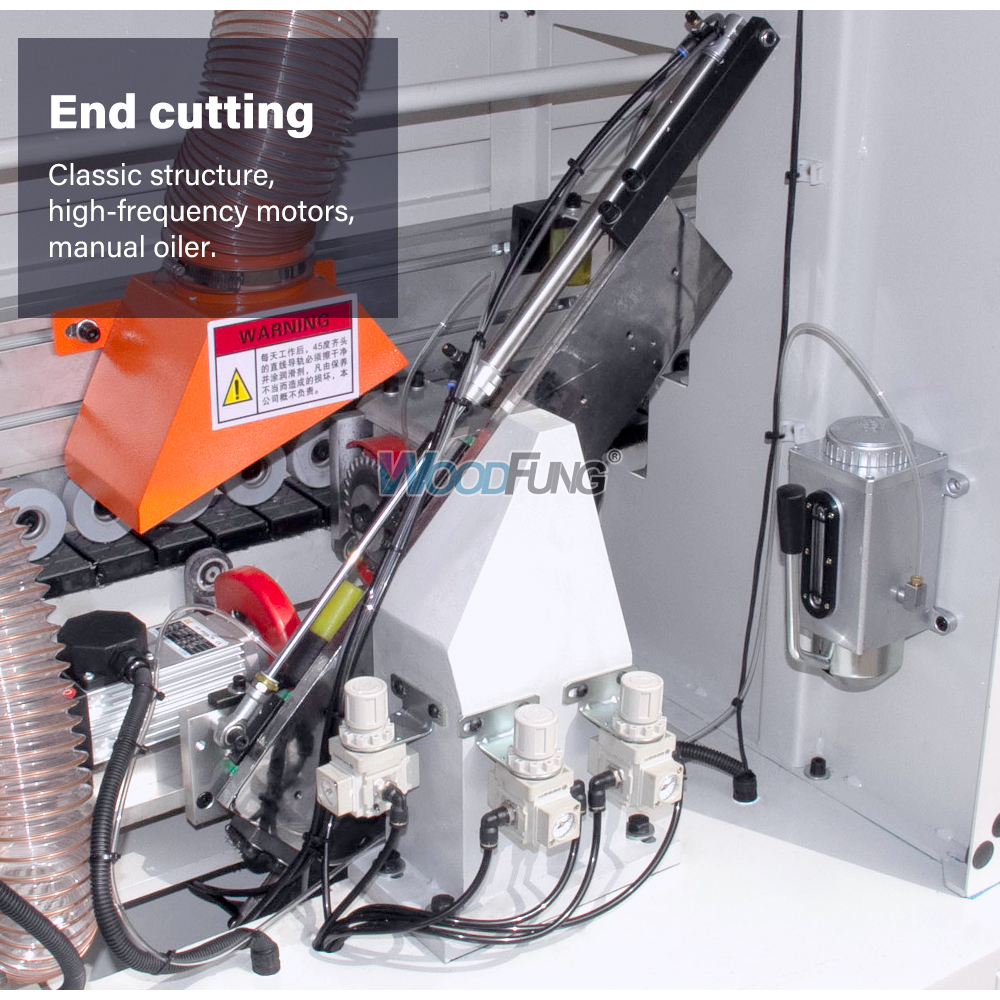

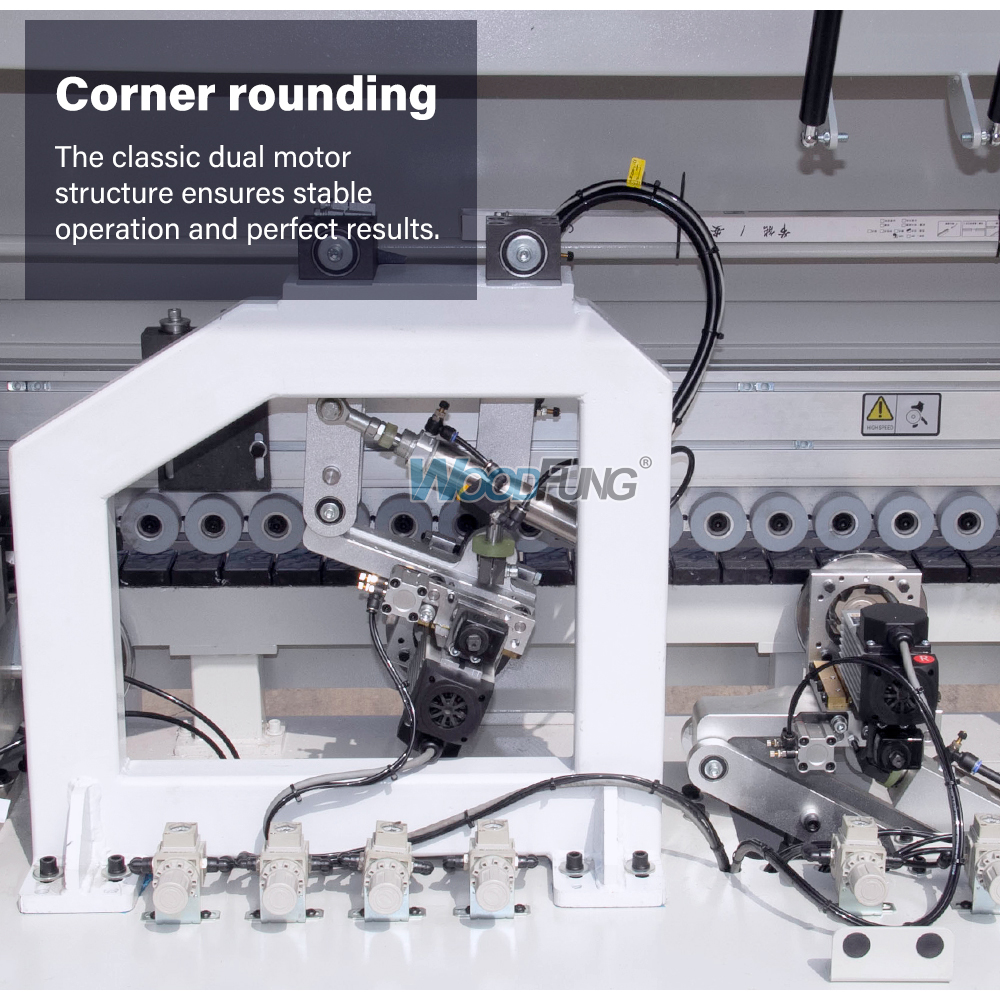

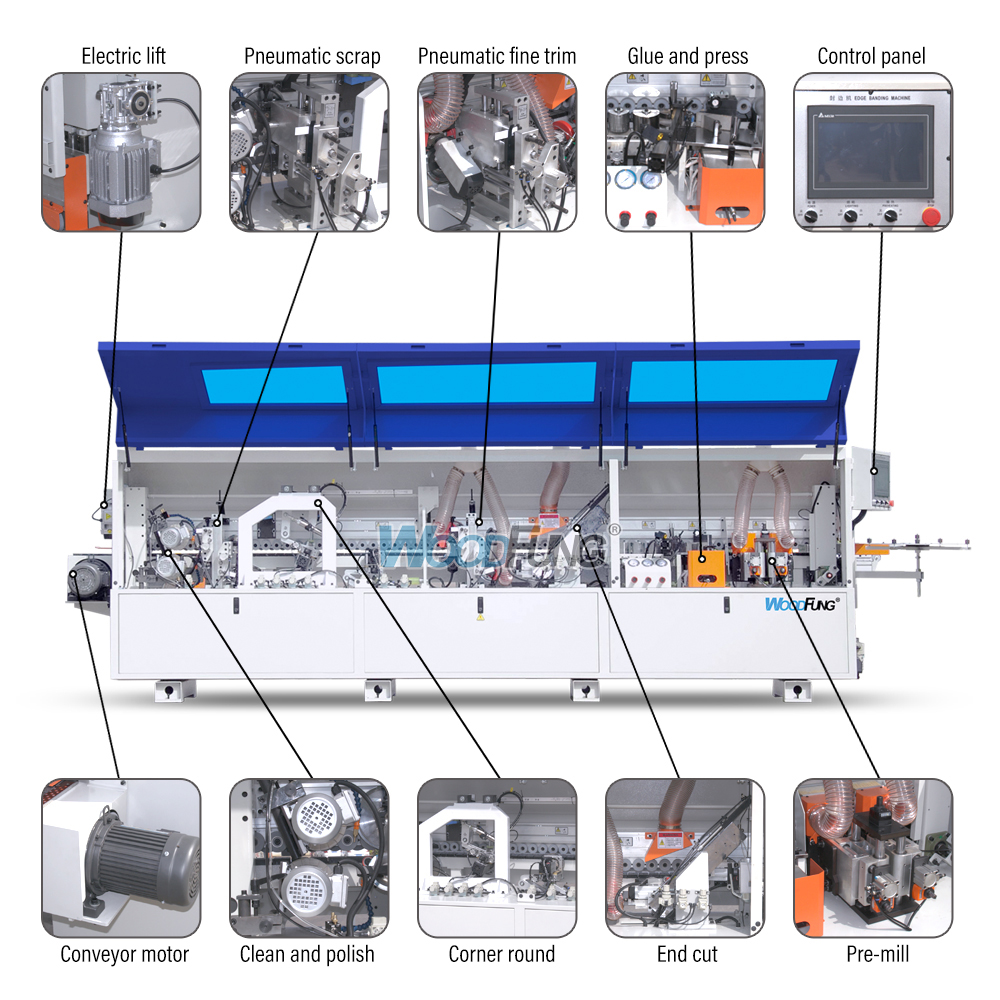

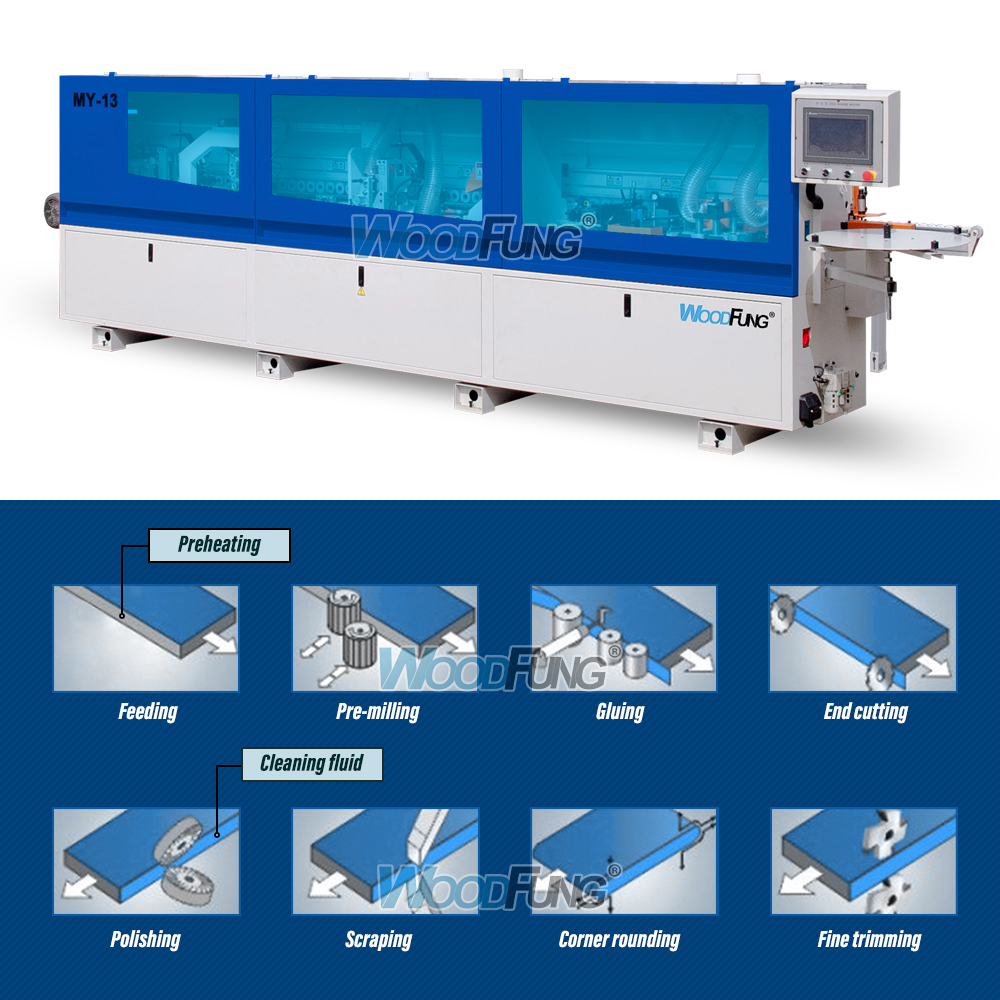

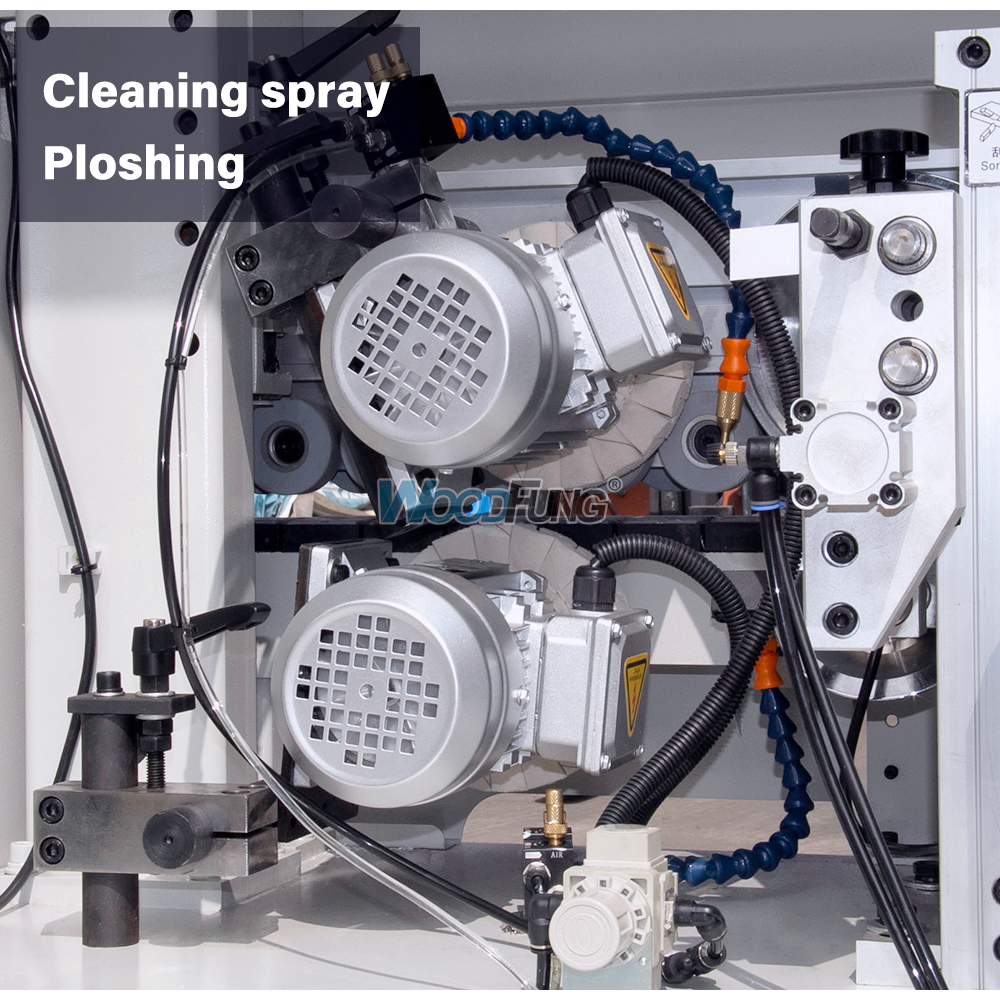

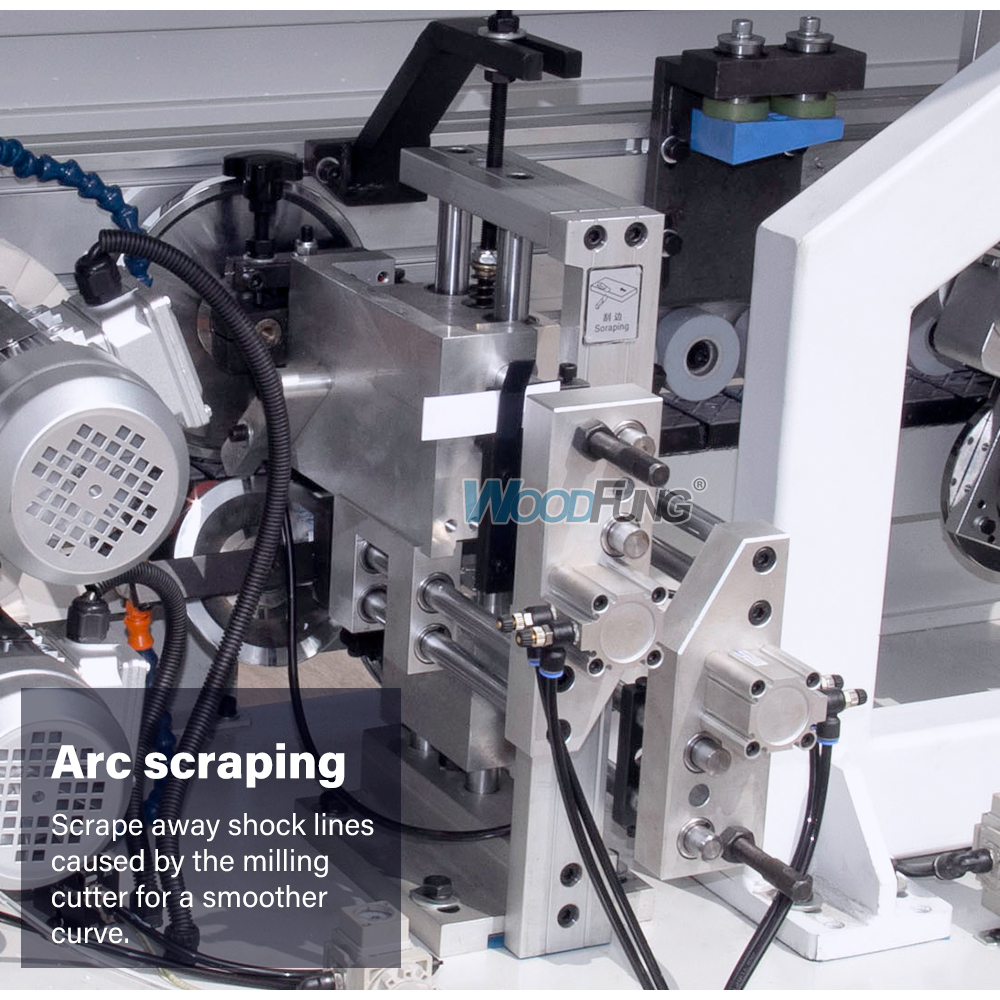

Functions:pre milling,gluing,end cutting,Polishing Scraping Corner rounding Fine trimming
|
|||
|
Voltage
|
380V/220V
|
Total Power
|
12KW
|
|
Panel thickness
|
10-50mm
|
Edge banding thickness
|
0.3-3.0mm
|
|
Feeding speed
|
12M/14M/18M/min
|
Edge banding width
|
10~60mm
|
|

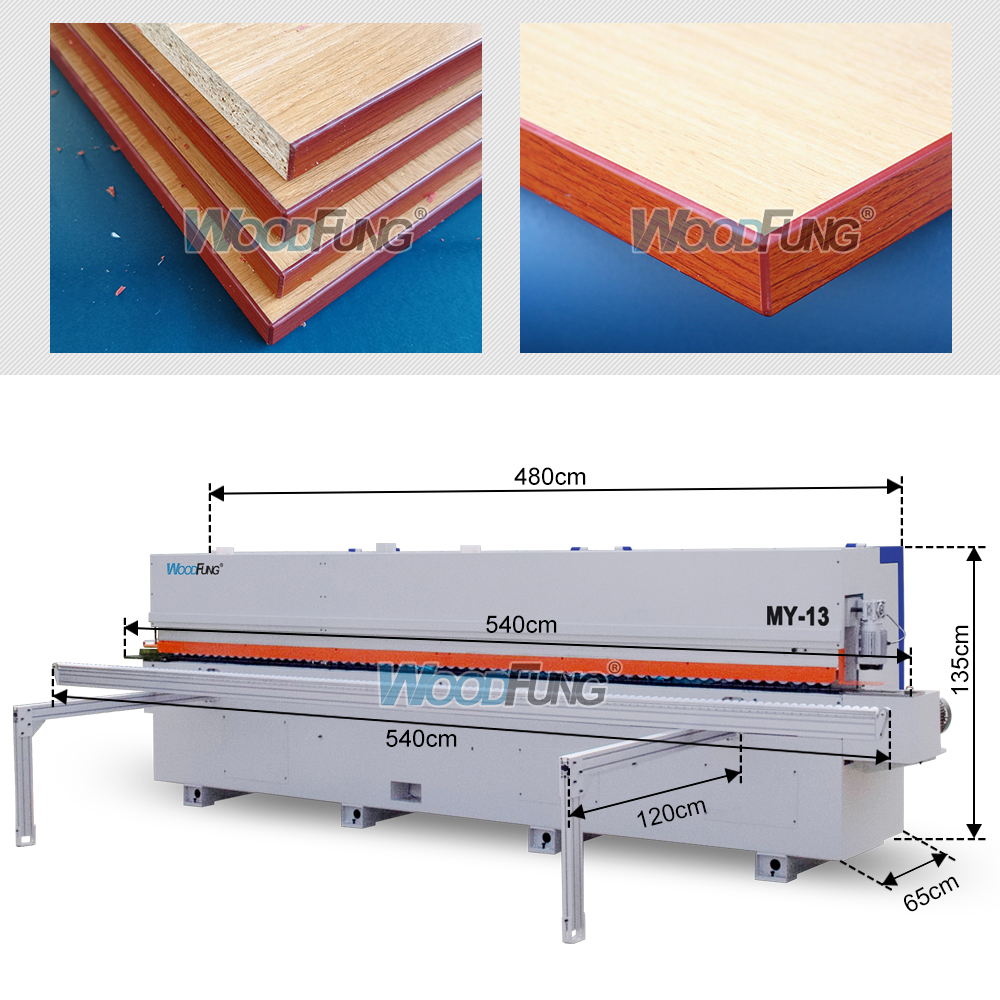

Overall size
|
5400X650X1350mm
|
Gross weight | 1250kgs |
