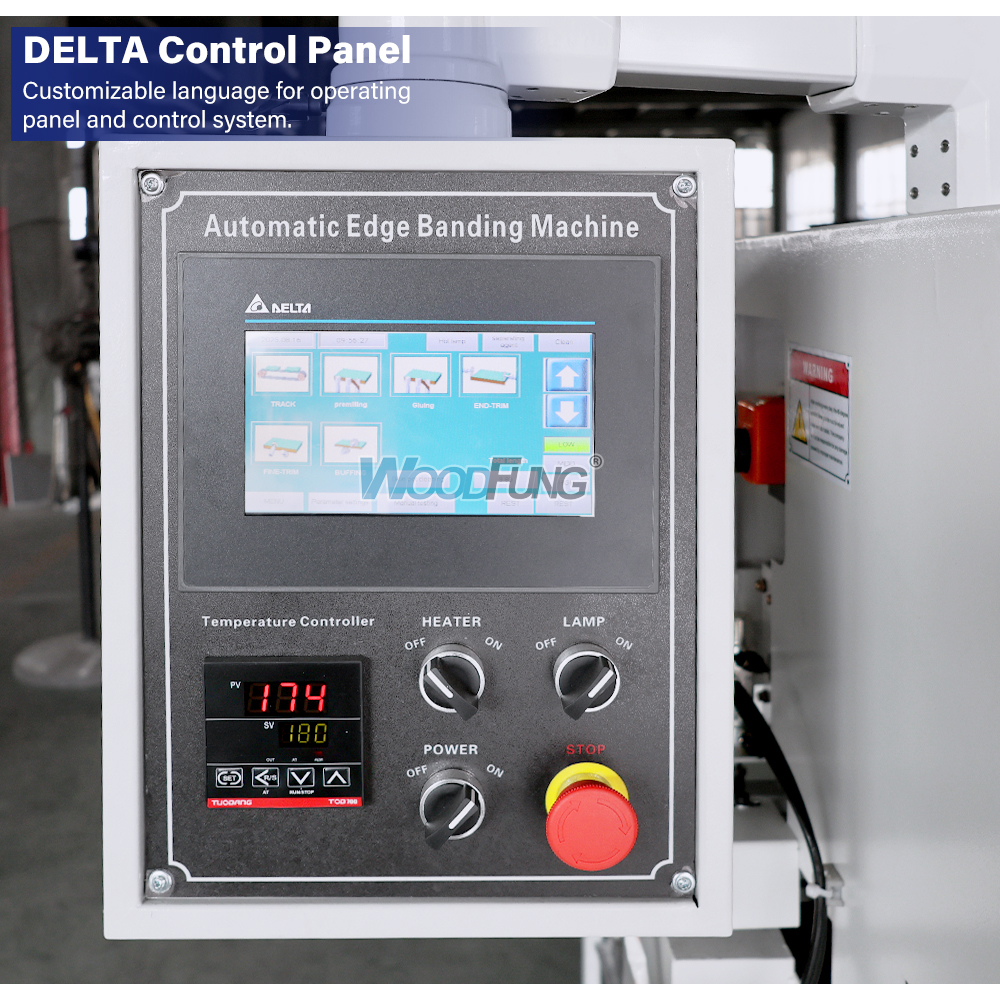

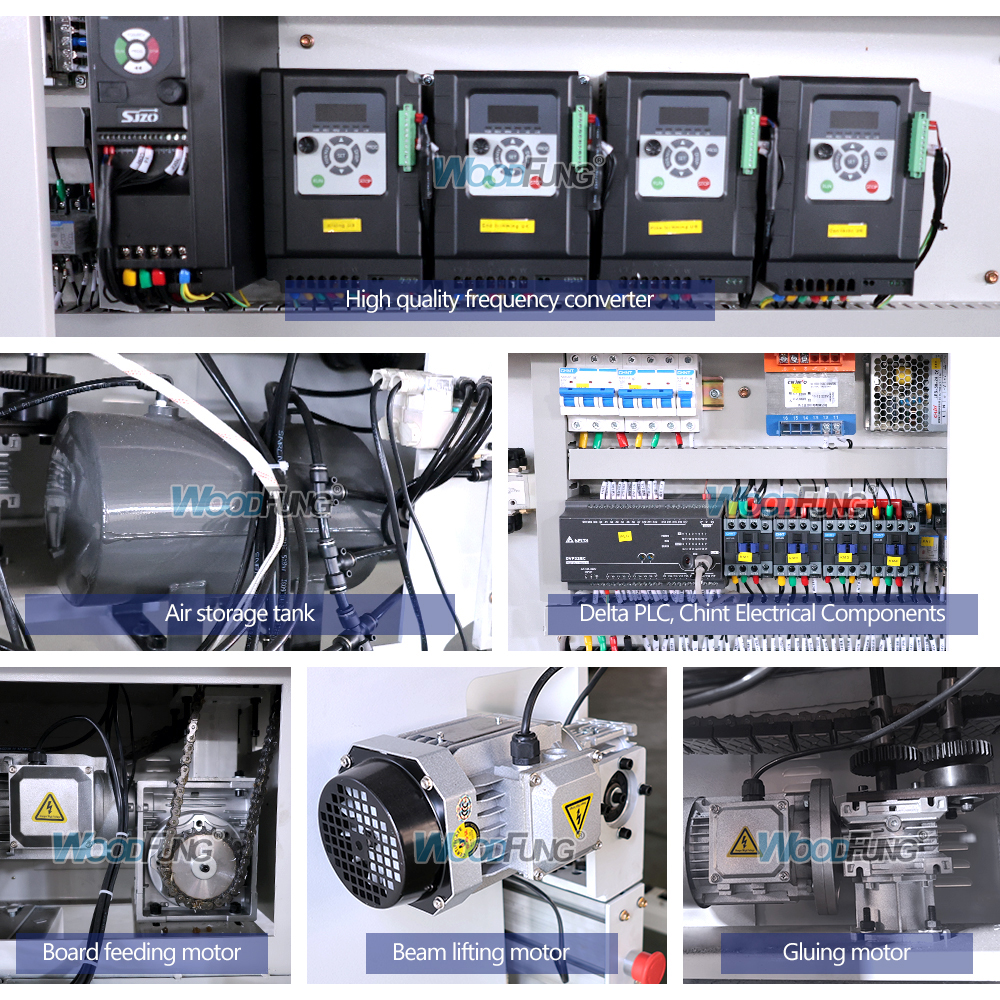

(1) PLC control system with DELTA Brand LED display and keypad
(2) Work-piece is fed by chain
(3) Edge coil support plate: Ø 800 mm, for PVC/ABS
(4) Edge feeding is automatic for roller materials with a thickness of 0.4–3 mm; strip material can be hand-fed
(5) Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

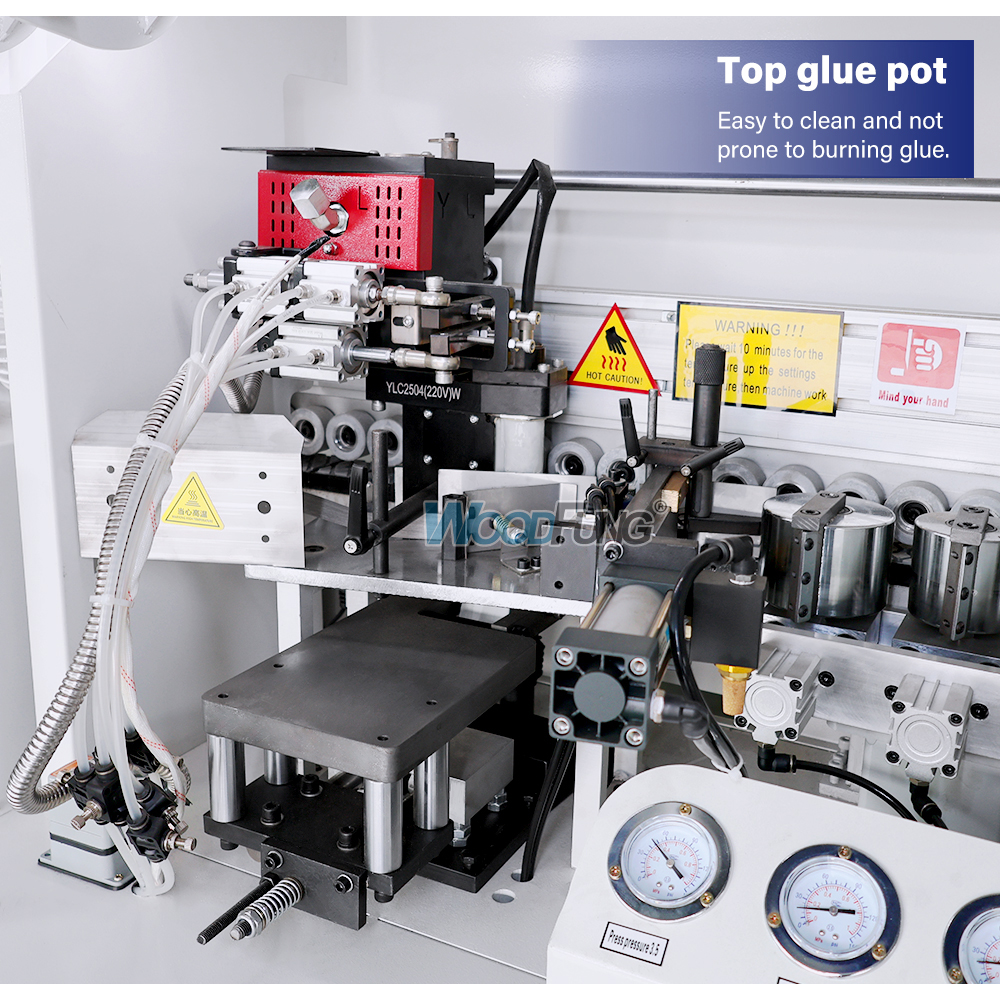

(6) Teflon-coated hot-melt glue pot

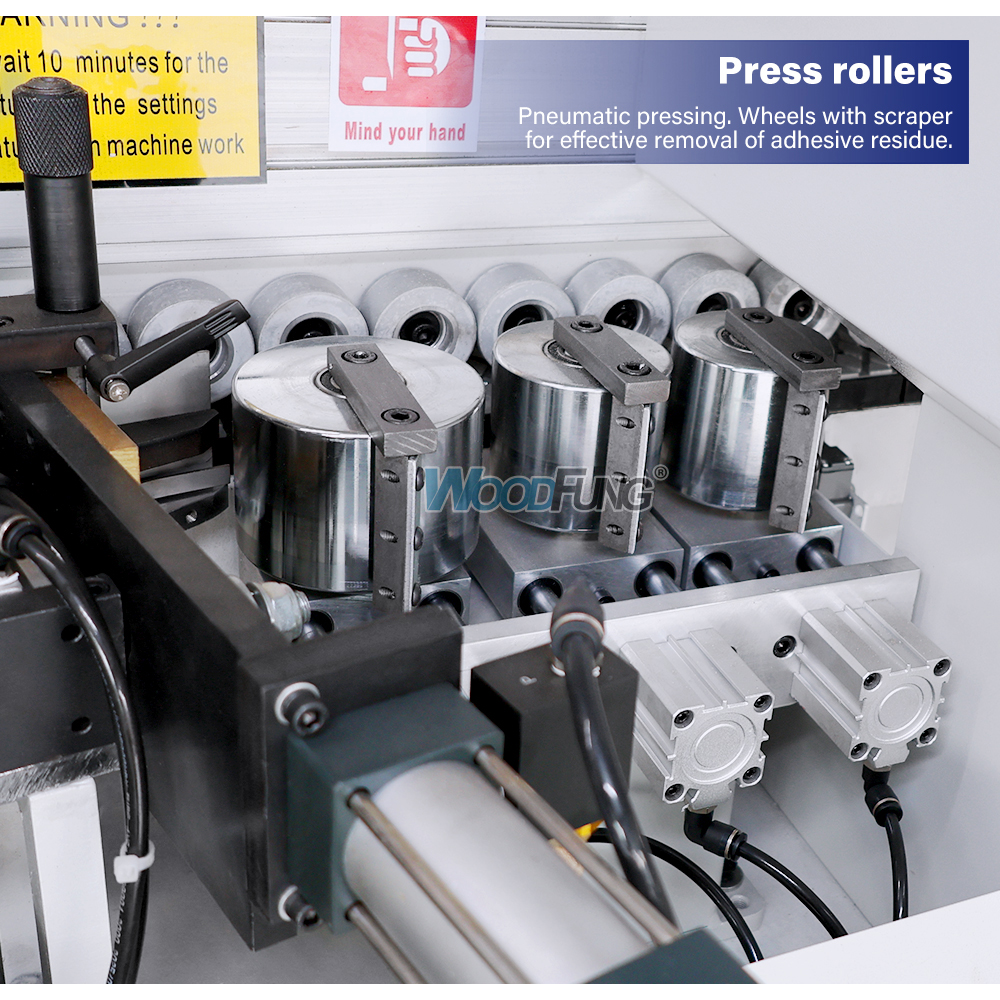

(7) Spring loaded pressure unit with 3 pressure roller

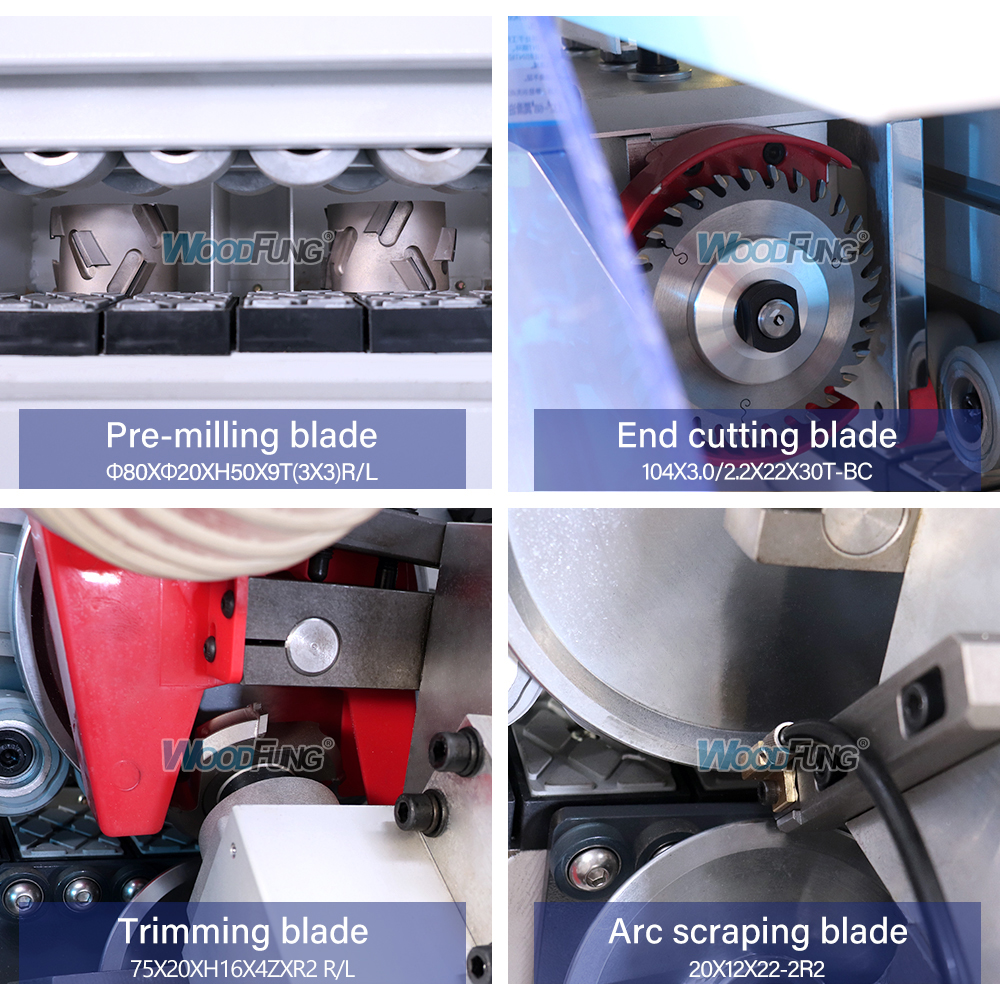

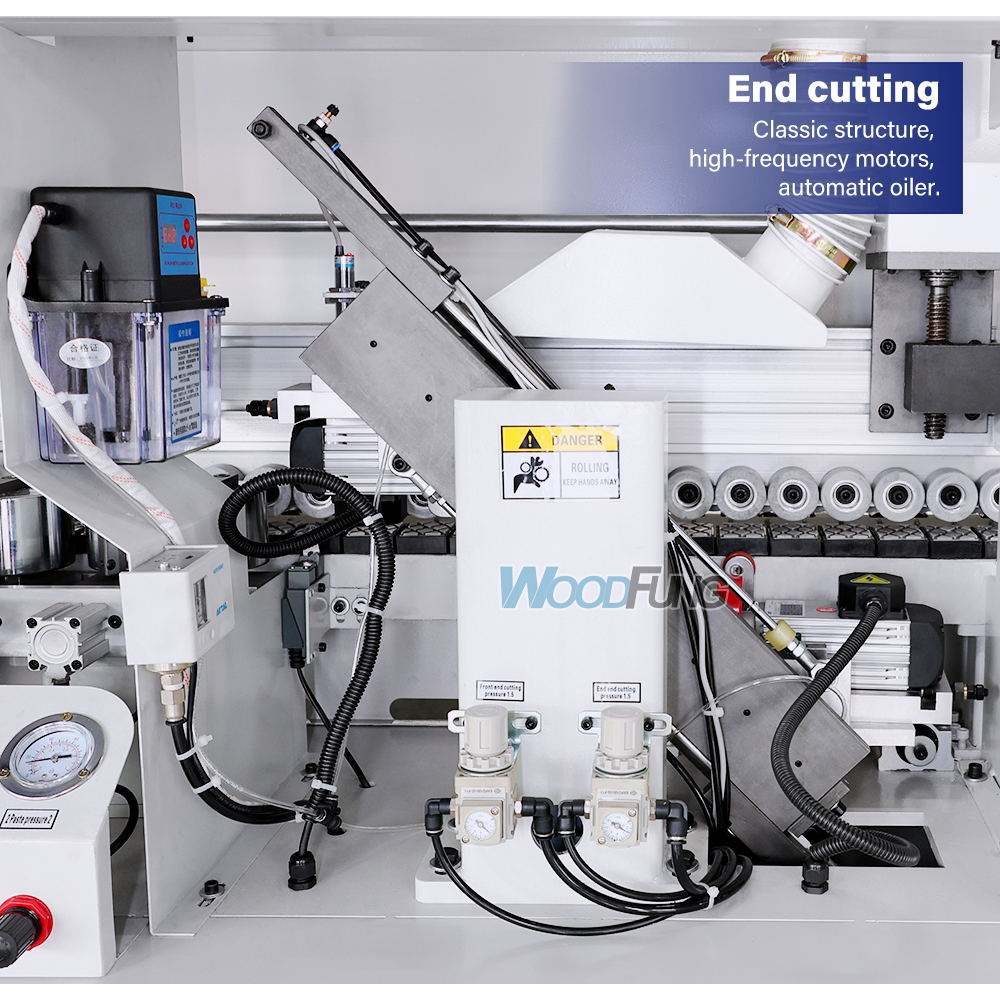

(8) 12,000 rpm, 0.22 kW end trimming unit, with Ø 100 mm TC-Saw blades

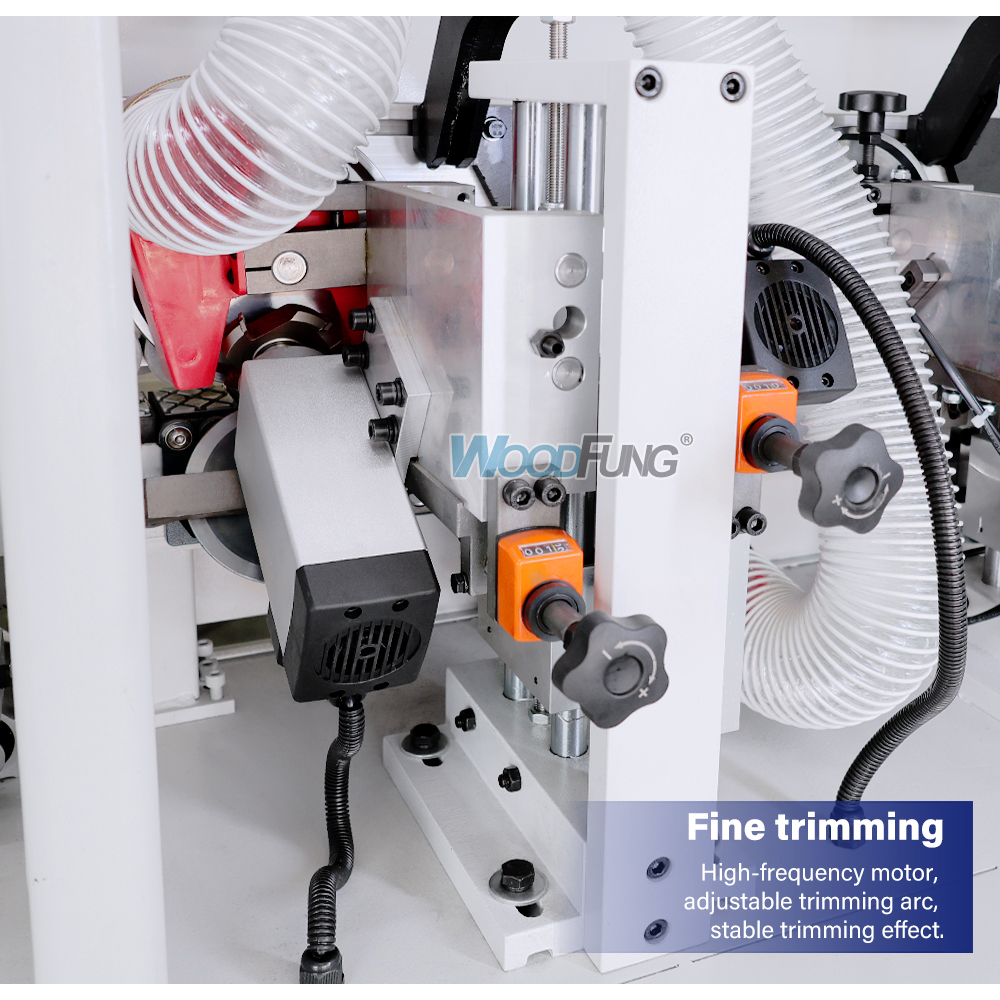

(9) 12,000 rpm, 0.37 kW flush trimming, radius trimming and bevel trimming unit

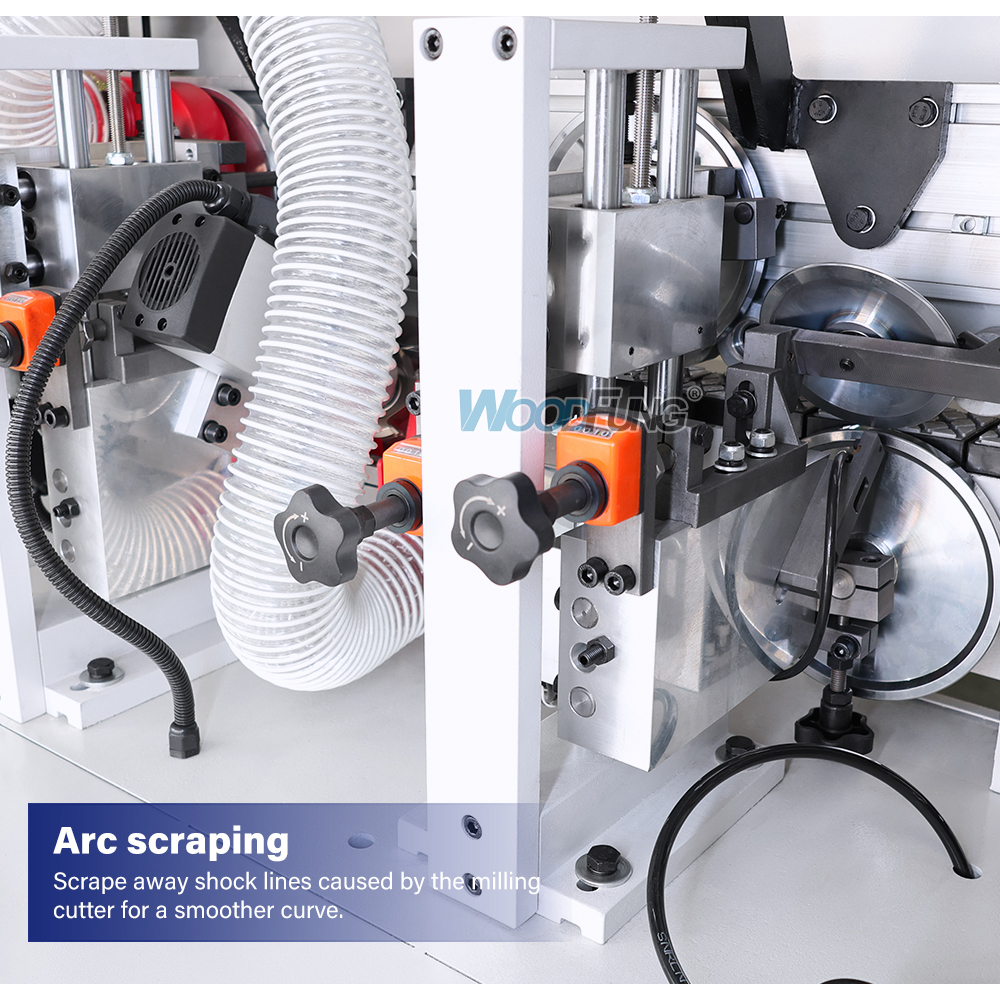

(10) Radius scraper + 3,000 RPM buffing unit
(11) Tooling for 2 mm radius
(12) Aluminum Heavy duty pressure beam with extendable work-piece support

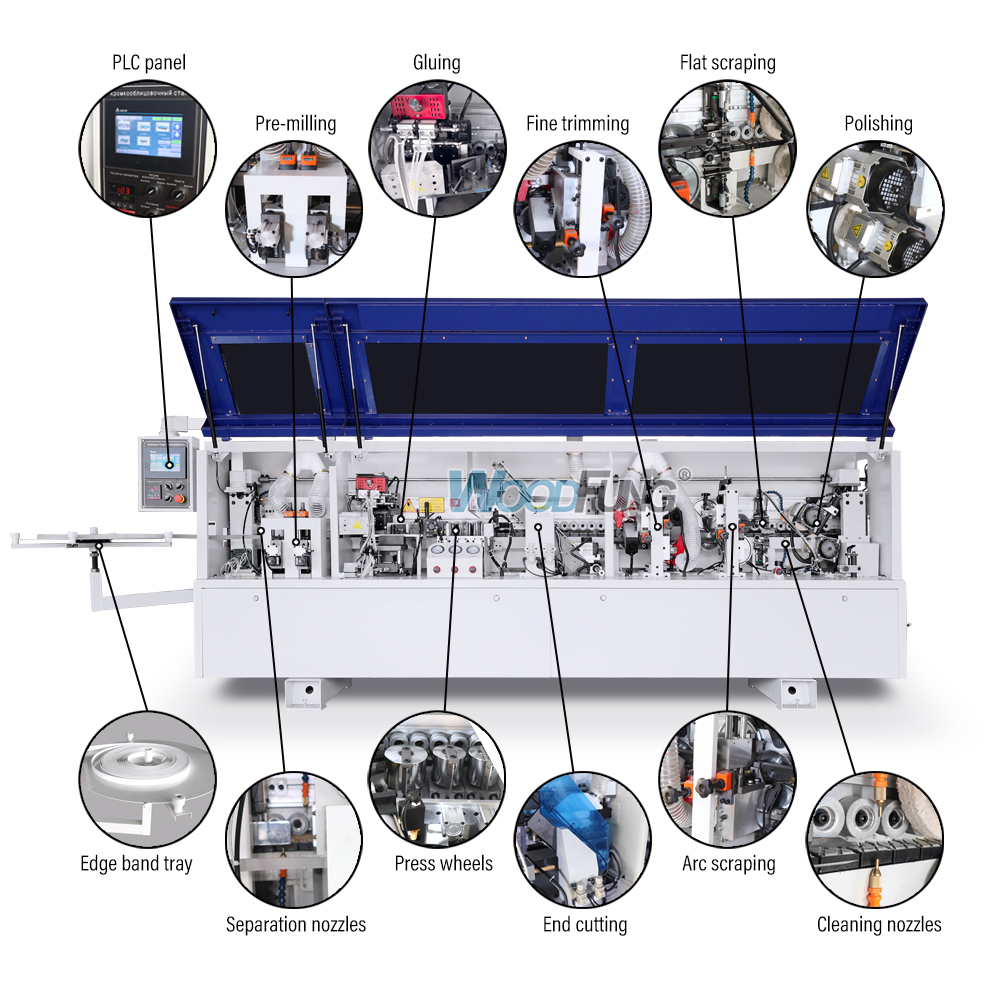

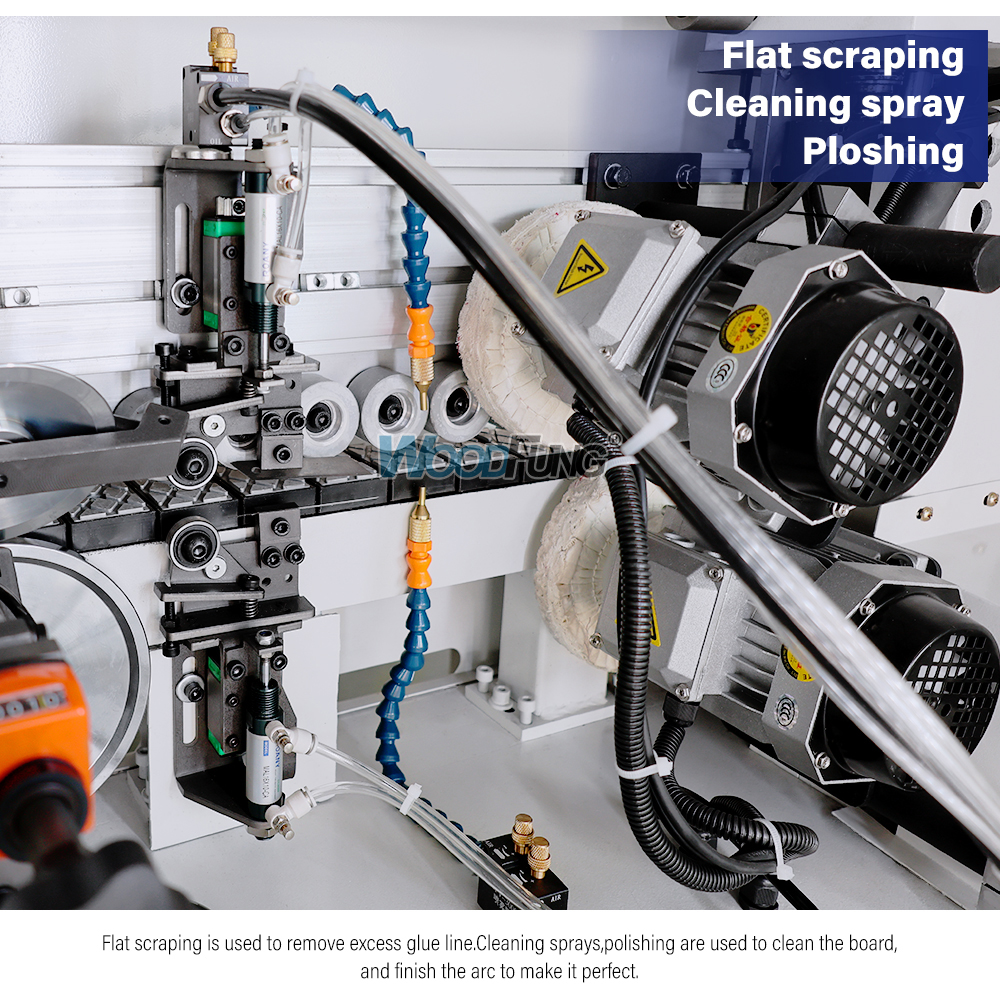

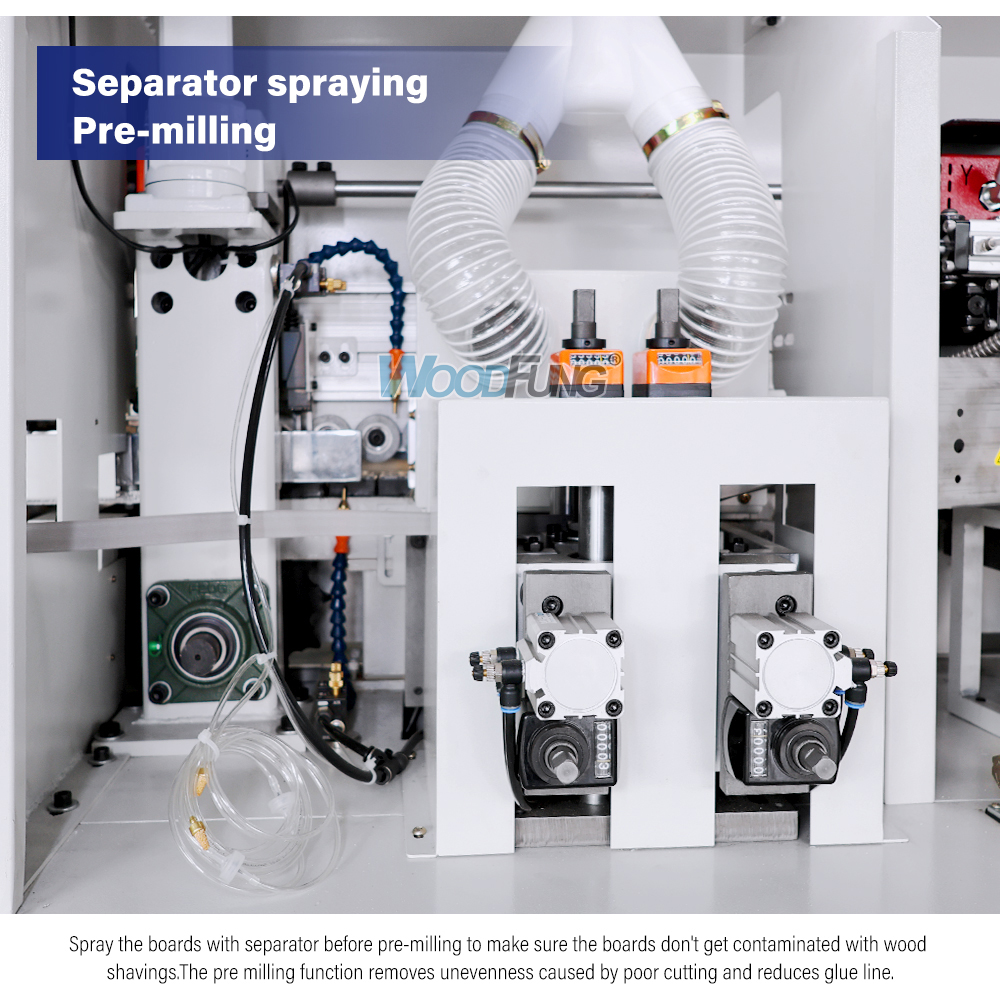

Having all Functions liquid spray, Pre-heating, Pre-Milling, Edging, End Cutting, Top & Bottom Trimming, Corner Rounding, Profile Scrapping, Liquid Spray and Buffing. Top Glue pot is provided for optimal glue, application to have almost no glue line. Easy to clean and maintain glue pot having long service life. “SMART” Touch Screen PLC enabled having in-built temperature Controller completely as per European Technology. 3 Pressure Rollers pneumatically powered are provided to give, sufficient pressure on the edge band tape for proper adhesive. Diamond tools on Pre-Milling units is provided. Encoder for accurate raising & lowering of Pressure Beam is provided. Encoder for easy and fine tuned movement of the work piece is provided. Additional Air Tank is provided for non-dropping of air during operation.

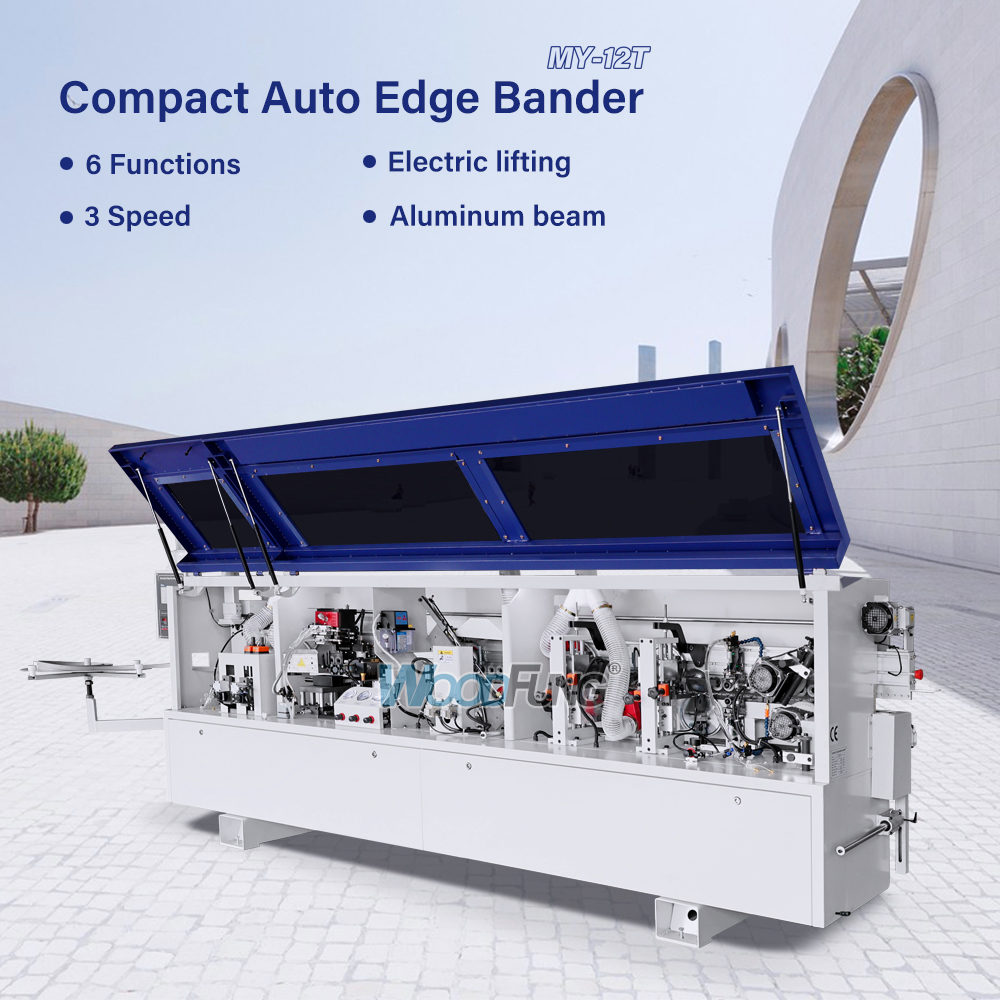

Woodfung Machinery. has consistently maintained ours leading position in the woodworking market with standard and special Robust and reliable edgebanding performance. Owing to the stringent quality policy, our Robust and reliable edgebanding performance meets the exact requirements of varied clients. We are one of the leading suppliers and exporters of optimum quality Compact Automatic EdgeBander, A compact MY-12T PUR edgebanding machine with end trimming, flushing trimming. Also, our Robust and reliable edgebanding performance is illustrious in the market for its perfect designing, flawless performance, cost-effectiveness, and other such features.
5. We provide global retail customers with a variety of platform transaction methods, and door-to-door shipping services.
Specification

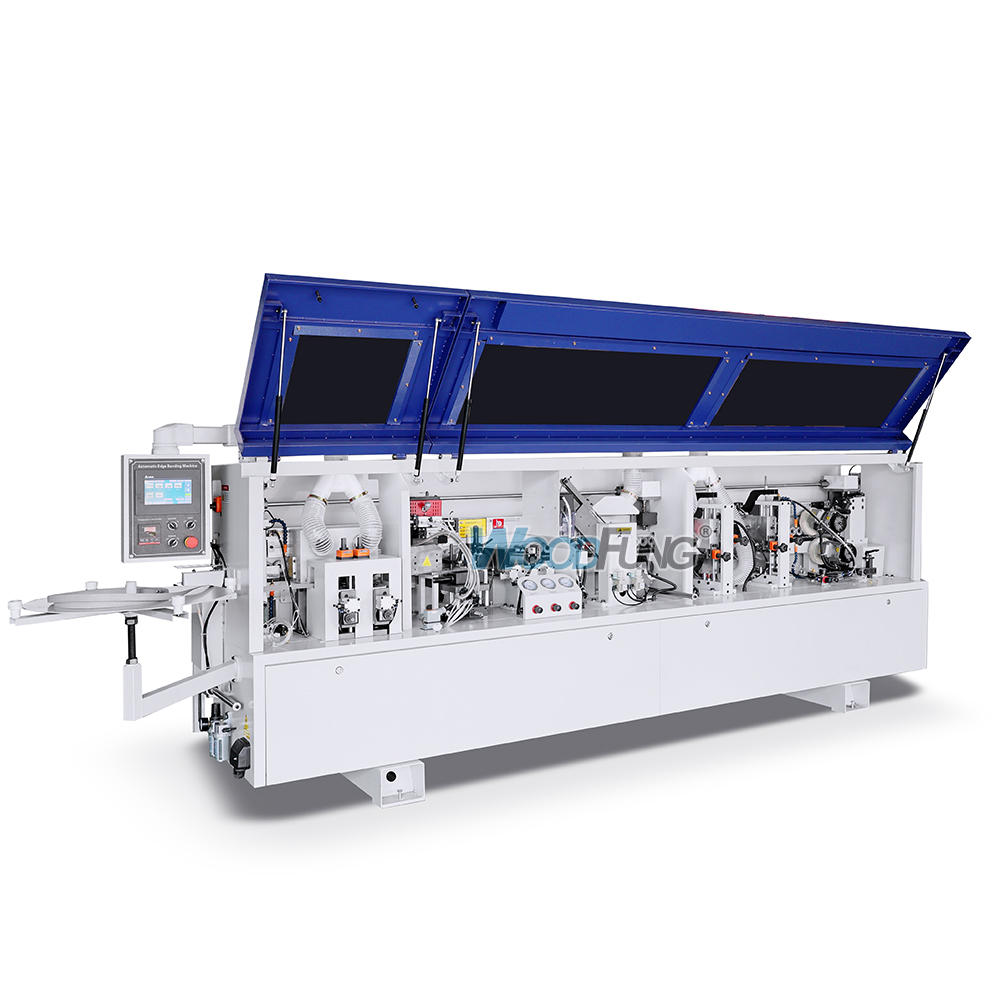

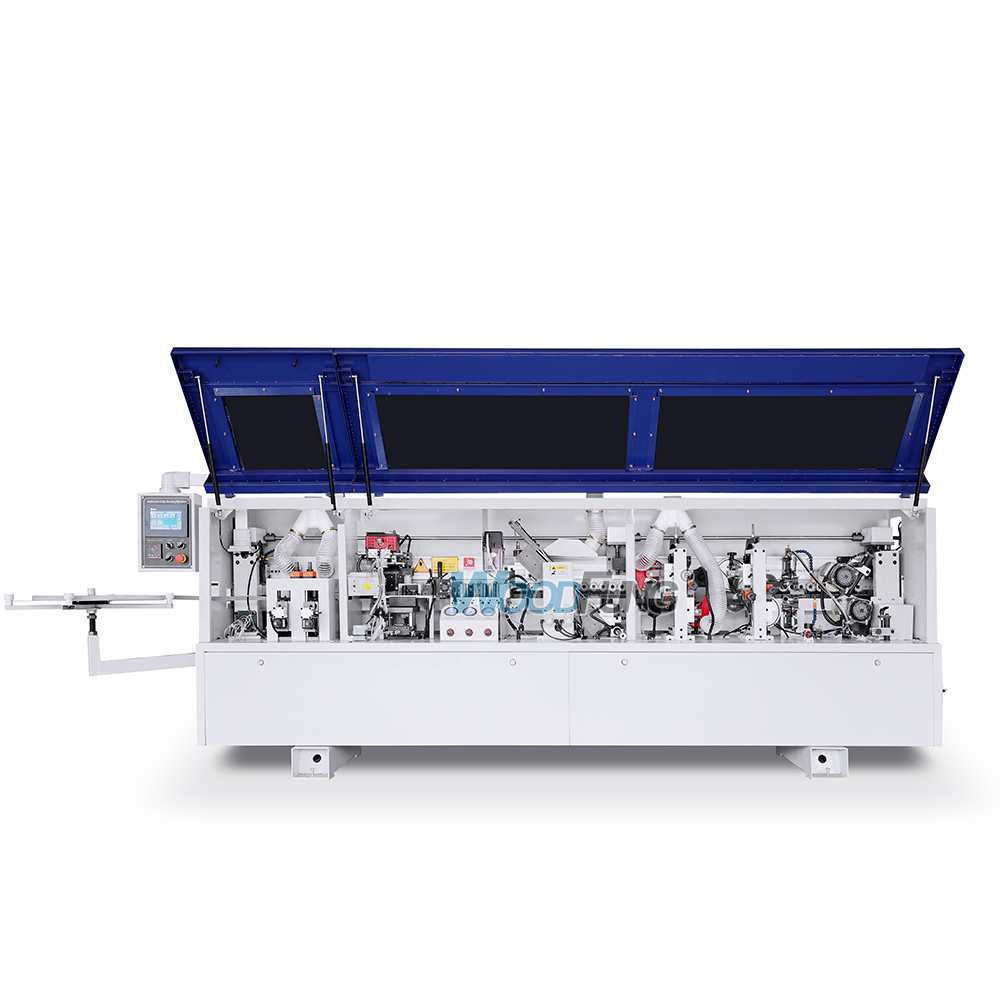

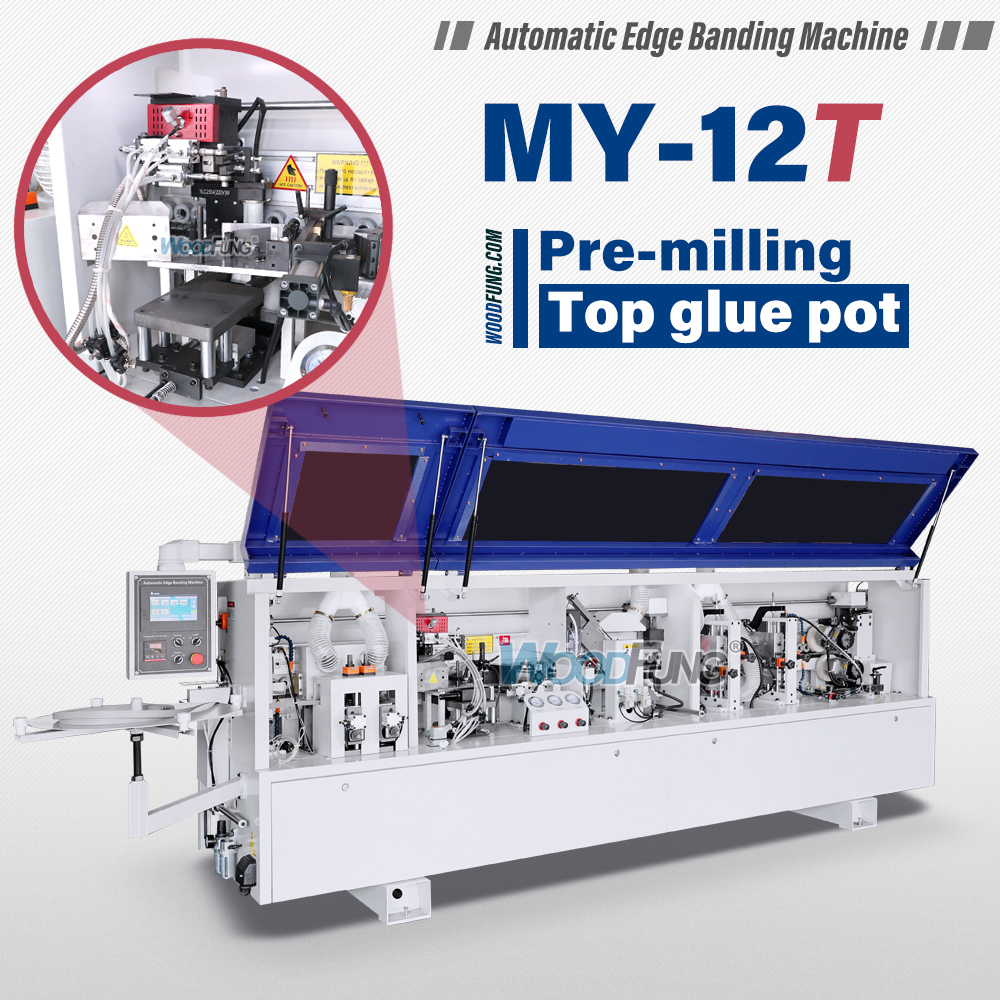

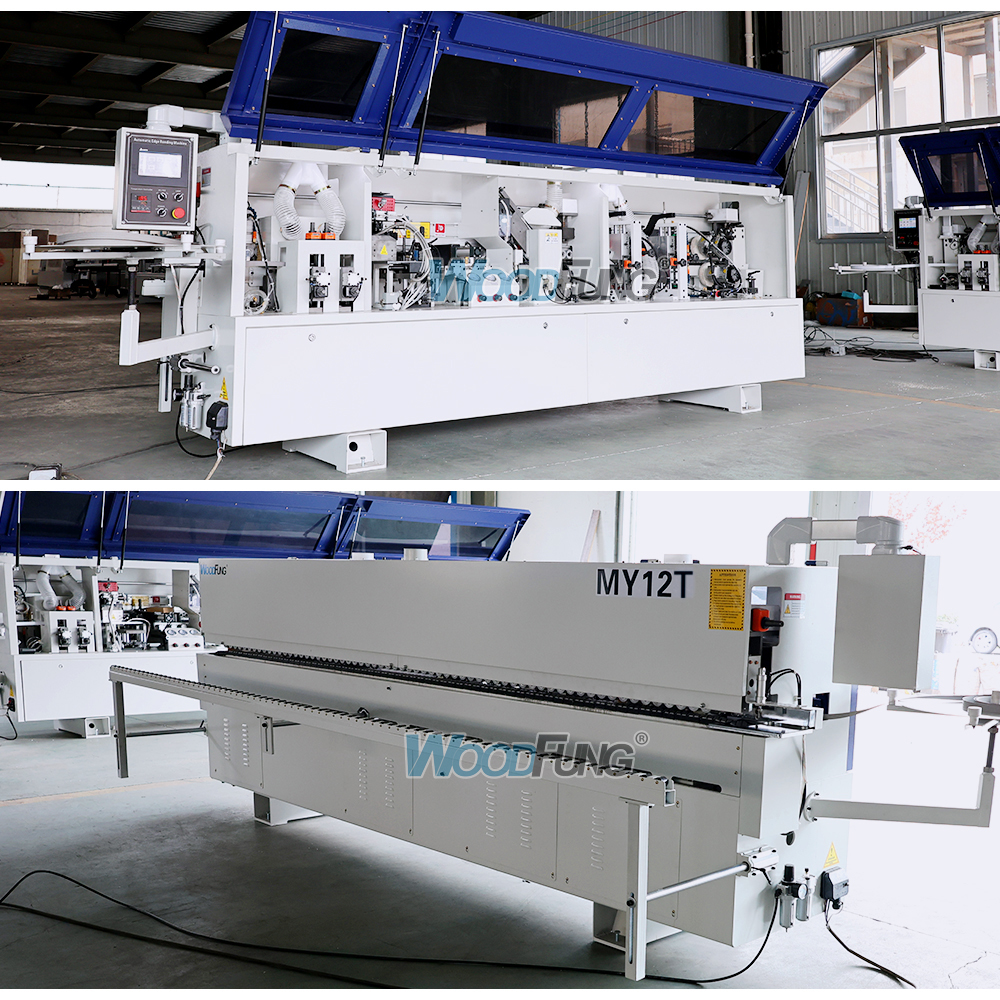

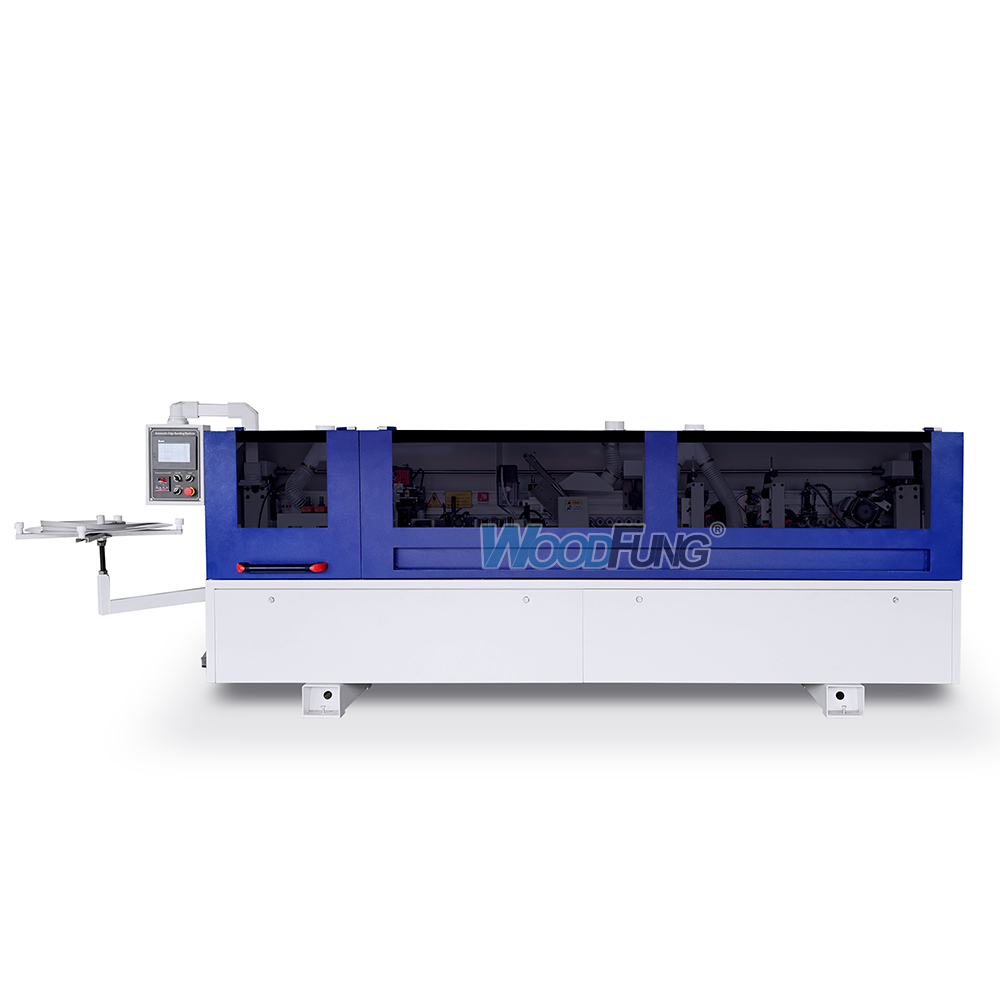

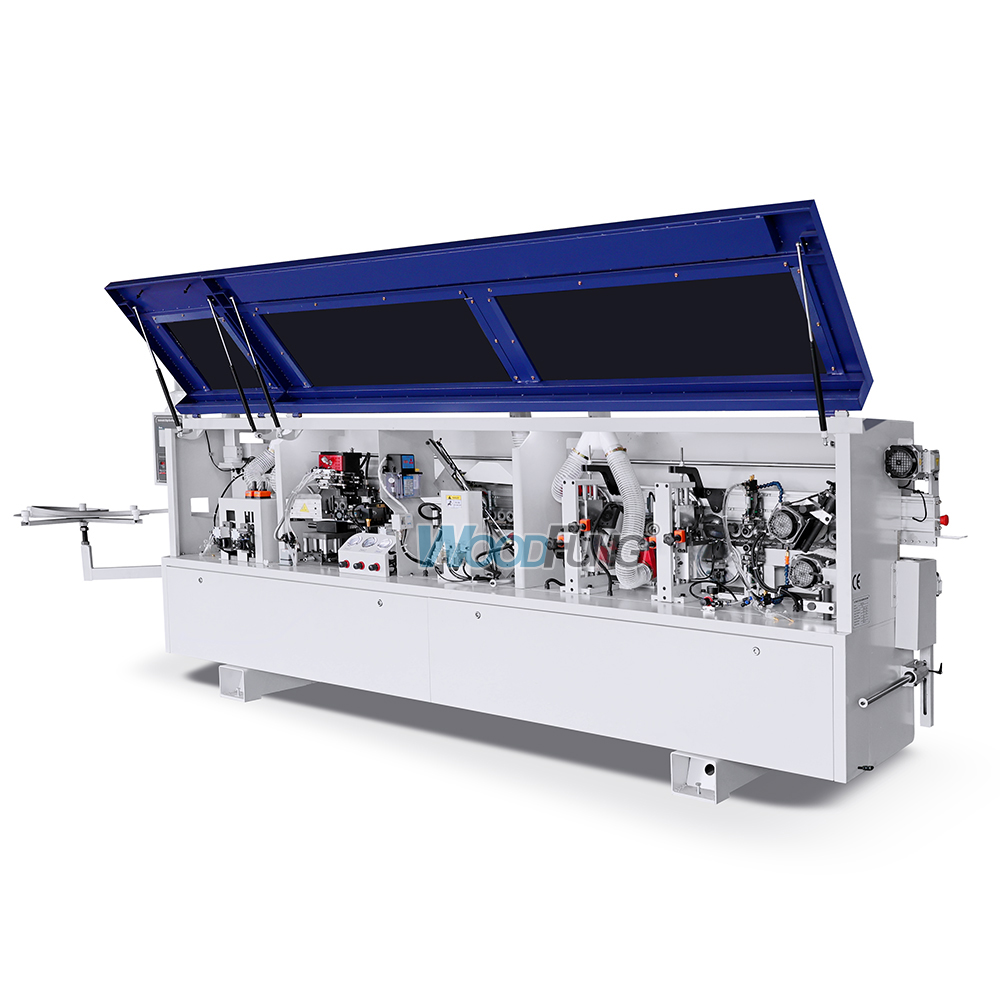

3.7m premilling Edge banding machine Woodfung MY12T with premilling,top glue pot and automatic lift aluminum beam
|
Model
|
MY-12T full automatic edge banding machine
|
||
|

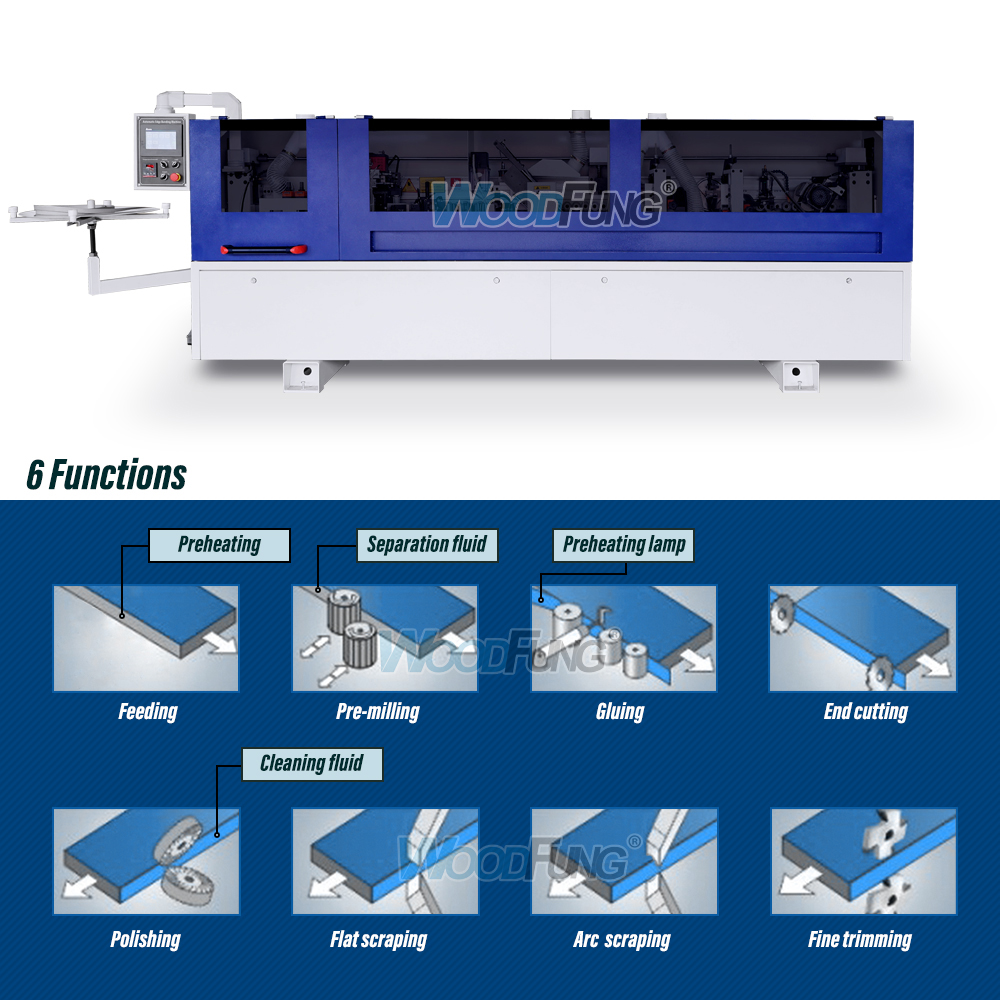

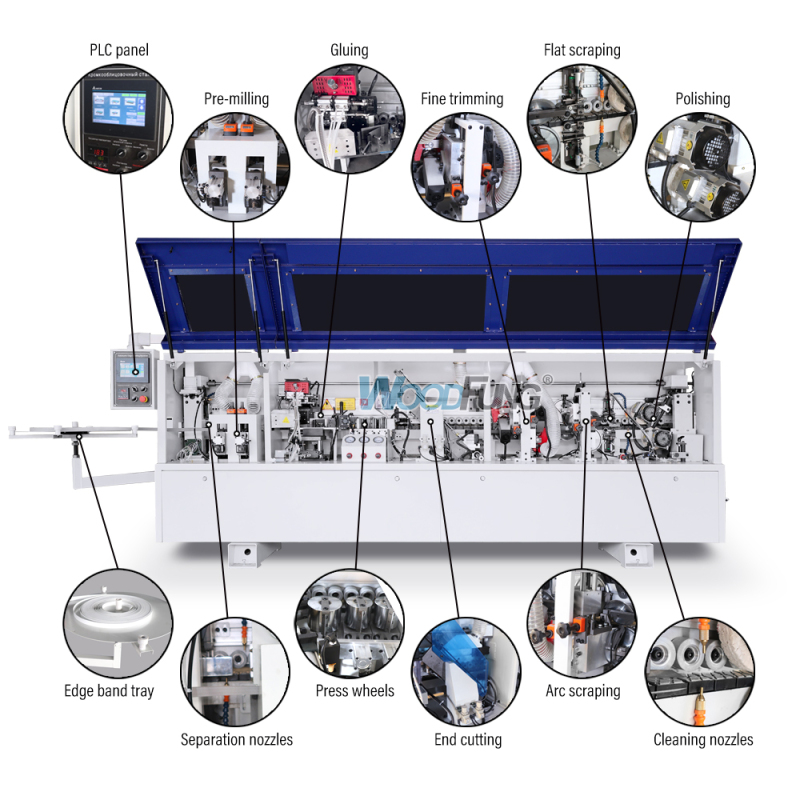

Functions:pre milling,gluing,end cutting,fine trimming,flat trimming,and polishing
|
|||
|
Voltage
|
380V/220V
|
Total Power
|
10.6KW
|
|
Panel thickness
|
10-45mm
|
Edge banding thickness
|
0.4-3.0mm
|
|
Feeding speed
|
12M/14M/18M/min
|
Edge banding width
|
12~60mm
|
|

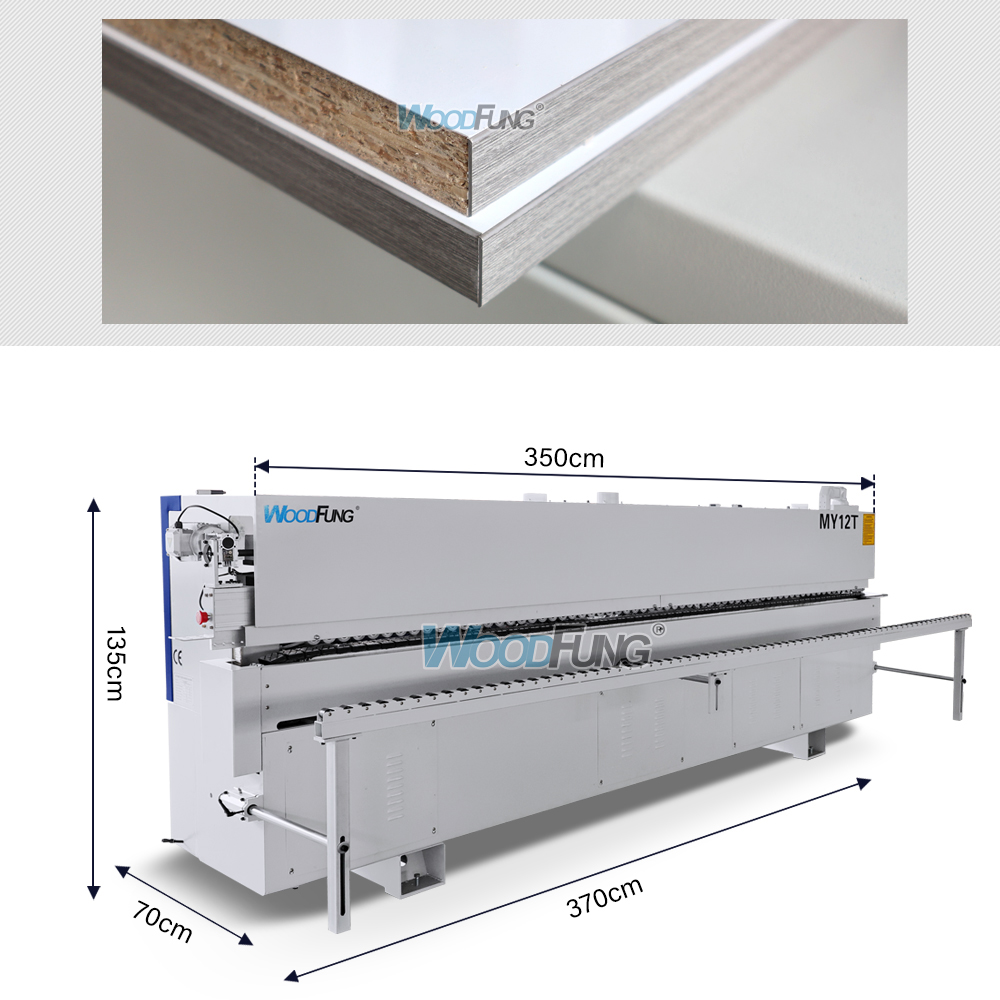

Overall size
|
3700X700X1200mm
|
Working pressure
|
0.7Mpa
|
|
Pack
|
Wooden box
|
Net weight
|
1150kgs
|
|
Pack size
|
3950X750X1250mm
|
Gross weight
|
1250kgs
|
